When Algorithms Go Wrong

By Natasha Diederen, Sahra Yusuf, and Olga Guțan

I. Introduction

An algorithm is a finite sequence of well-defined, computer-implementable instructions, typically designed to solve a class of specific problems or to perform a computation. Similarly to how we use our brains to (sometimes wrongly) categorize things in order to make sense of the world, a computer needs an algorithm to make sense of what the user is asking it to do. Since an algorithm is a way of communication between two vastly different entities — a human and a machine — some information gets lost along the way. The process is intellectually intriguing to witness, however, problems can arise when we use algorithms to make decisions that influence the lives of humans and other self-aware living beings.

Algorithms are indispensable for efficiently processing data; therefore they will continue to be part of our programming ecosystem. However, we can (and must) keep some space in our minds for the additional nuances that reality contains. While a programmer may not be able to fully convey these nuances to a computer, we must be aware that no algorithm’s output is final, all-encompassing, and universally true. Furthermore, we must be mindful of the conclusions we draw from the output of algorithms.

II. Algorithms Gone Wrong

Broadly speaking, potential pitfalls for algorithms are manifold. The issues stem from the nature of the algorithms — a communication tool between a human entity and a nonhuman entity (a computer).  These problems morph into different real-life issues based on what types of algorithms we use and what we use them for.

Even when playing with algorithms intended to solve toy problems that we already have the answers to, we can notice errors. However, in real life, data is (even) more messy and consequences are far larger. In 2018, Elaine Herzberg was hit and killed by a self-driving taxi. She was jaywalking in the dark with a bicycle by her side and the car alternated between classifying her as a person and a bicycle, thus miscalculating her trajectory and not classifying Elaine as an obstruction. In this case, the safety driver was distracted by a television program, and thus not entirely blameless. However, this serves as an example of how our blind trust in the reliability of algorithms can often result in complacency, with far reaching consequences.

A further example of error in algorithms is adversarial attacks on neural networks. This is when researchers (or hackers) feed a neural network a modified image, where changes made to the image are imperceptible to the human eye. Nevertheless, this can result in incorrect classification by neural networks, with high confidence to boot.

Figure 1. A demonstration of fast adversarial example generation applied to GoogLeNet (Szegedy et al., 2014a) on ImageNet. Source.

In Figure 1 we see how by adding an imperceptibly small vector whose elements are equal to the sign of the elements of the gradient of the cost function with respect to the input, we can change GoogLeNet’s classification of the image. Here the \(\epsilon\) of 0.007 corresponds to the magnitude of the smallest bit of an 8 bit image encoding after GoogLeNet’s conversion to real numbers.

Although researchers are working on making neural networks more robust to these sorts of attacks, susceptibility to adversarial attacks seems to be an inherent weakness of deep neural networks. This has serious security implications as computer vision increasingly relies on these models for facial recognition, autonomous vehicles, speech recognition and much more.

III. Geometry Processing with Imperfect Data

In geometry processing, there is often a need for refinement of geometric data, especially when the data is taken from “real” contexts. Examples of imperfections in 3D models include gaps, self-intersections, and non-manifold geometry, or geometry which cannot exist in reality (e.g. edges included in more than two faces and disconnected vertices).

One common source of imperfect, “real-life” data is 3D object scanning. The resulting models typically include gaps and large self-intersections as a result of incomplete scanning or other error arising from the scanning method. Despite these significant problems, scanned data is still invaluable for rapidly generating assets for use in game development and other applications. During our time at the Summer Geometry Institute, Dr. Matthias Nießner spoke about 3D scene reconstruction with scanned data. His work demonstrated a method of improving the overall quality of reconstructed scenes using bundle adjustment and other techniques. He also worked on solving the problem of incomplete scanned objects using machine learning. Previously, we have written about possible mistakes arising from the weaknesses of machine learning, but Dr. Nießner’s work demonstrates that machine learning is a valuable tool for refining data and eliminating mistakes as well.

Although error in geometry processing is not as frequently discussed, the implications are just as important as those of mistakes arising from the use of machine learning. This is primarily due to the fact that machine learning and geometry processing are not isolated fields or tools, but are often used together, especially in the sorts of situations we described earlier. By researching and developing new methods of data refinement, we can improve the usability of natural data and increase, for example, the safety of systems which rely on visual data.

IV. Human Error and Bias

The errors we have discussed so far exclude human error and bias, which can aggravate existing inequalities in society. For example, a Fellow one of us worked with during SGI mentioned how he worked on a project which used face tracking to animate digital characters. However, the state-of-the-art trackers only worked on him (a white male) and could not track eye or mouth movement for those in his team of black descent. Additionally, as we heard from Theodore Kim in another brilliant SGI talk, animation is focused on designing white skin and non-type 4 hair, further highlighting the systemic racism present in society.

Moreover, the fact that 94.8% of Automatic Gender Recognition (AGR) papers recognize gender as binary has huge implications for the misgendering of trans people. This could lead to issues with AGR based access control for things like public bathrooms, where transgender people may be excluded from both male and female facilities. The combination of machine and human error is especially dangerous, and it is important to recognize this, so that we can mitigate against the worst harm.

V. Conclusion

Algorithms have become a fundamental part of human existence, however our blind faith that algorithms are always (1) correct and (2) unbiased is deeply flawed. The world is a complicated place, with far too much data for computers to handle, placing a strong reliance on simplification algorithms.

As we have seen from the examples above, these algorithms are far from perfect and can sometimes erase or distort important data. This does not mean we should stop using algorithms entirely. What this does, however, mean is that we must employ a hearty dose of critical thinking and skepticism when analyzing results outputted by an algorithm. We must be especially careful if we use these results for making decisions that would influence the lives of other humans.

Math SGI research projects

Minimal Surfaces, But Periodic

By Zhecheng Wang, Zeltzyn Guadalupe Montes Rosales, and Olga Guțan

Note: This post describes work that has occurred between August 9 and August 20. The project will continue for a third week; more details to come.

I. Introduction

For the past two weeks we had the pleasure of working with Nicholas Sharp, Etienne Vouga, Josh Vekhter, and Erik Amezquita. We learned about a special type of minimal surfaces: triply-periodic minimal surfaces. Their name stems from their repeating pattern. Broadly speaking, a minimal surface minimizes its surface area. This is equivalent to having zero mean curvature. A triply-periodic minimal surface (TPMS) is a surface in \(\mathbb{R}^{3}\) that is invariant under a rank-3 lattice of translations.

Figure 1. (Left) A Minimal Surface [source] and (right) a TPMS [source].

Let’s talk about nonmanifold surfaces. “Manifold” is a geometry term that means: every local region of the surface looks like the plane (more formally — it is homeomorphic to a subset of Euclidean space). Non-manifold then allows for parts of the surface that do not look like the plane, such as T-junctions. Within the context of triangle meshes, a nonmanifold surface is a surface where more than 3 faces share an edge.

II. What We Did

First, we read and studied the 1993 paper by Pinkhall and Polthier that describes the algorithm for generating minimal surfaces. Our next goal was to generate minimal surfaces. Initially, we used pinned (Dirichlet) boundary conditions and regular manifold shapes. After ensuring that our code worked on manifold surfaces, we tested it on non-manifold input.

Additionally, our team members learned how to use Blender. It has been a very enjoyable process, and the work was deeply satisfying, because of the embedded mathematical ideas intertwined with the artistic components.

III. Reading the Pinkall Paper

“Computing Discrete Minimal Surfaces and Their Conjugates,” by Ulrich Pinkall and Konrad Polthier, is the classic paper on this subject; it introduces the iterative scheme we used to find minimal surfaces. Reading this paper was our first step in this project. The algorithm that finds a discrete locally area-minimizing surface is as follows:

  • Take the initial surface \(M_0\) with boundary \(∂M_0\) as first approximation of M. Set i to 0.
  • Compute the next surface \(M_i\) by solving the linear Dirichlet problem $$ \min_{M} \frac{1}{2}\int_{M_{i}}|\nabla (f:M_{i} \to M)|^{2}$$
  • Set i to i+1 and continue with step 2.

The stopping condition is \(|\text{area}(M_i)-\text{area}(M_{i+1})|<\epsilon\). In our case, we used a maximum number of iterations, set by the user, as a stopping condition.

There are additional subtleties that must be considered (such as “what to do with degenerate triangles?”), but since we did not implement them — their discussion is beyond the scope of this post.

IV. Adding Periodic Boundary Conditions

This is, at its core, an optimization problem. To ensure that the optimization works, the boundary conditions have to be periodic instead of fixed in space. This is because we are enforcing a set of boundary conditions on periodic shapes — that is, tiling in a 3D space.

IV(a). Matching Vertices

First, we need to check every two pairs of vertices in the mesh. We are looking  to see if they have identical coordinates in two dimensions, but are separated by exactly two units in the third dimension. When we find such pairs of vertices, we classify them to \(G_x\), \(G_y\), or \(G_z\). Note that we only store unique pairs.

IV(b). Laplacian Smoothness at the Boundary Vertices

Instead of using the discrete Laplacian, now we introduce a sparse matrix K to adjust our smoothness term based on the new boundary:

$$\min_{x}x^T(L^TK^TKL)x \text{ s.t. } x[b] = x_0[b].$$

Next, we construct the matrix K, which is a sparse square matrix of dimension #vertices by #vertices. To do so, we set \(K(i,i) = 1\), \(K(i,j) = 1\), and set the \(j\)th row entries to 0 for every pair of unique matched boundary vertices. For every interior vertex \(i\), we set \(K(i,i) = 1\).

IV(c). Aligning Boundary Vertices

Now we no longer want to pin boundary vertices to their original location in space. Instead, we want to allow our vertices to move, while the opposite sides of the boundary still match. To do that, we need to adjust the existing constraint term and to include additional linear constraints \(Ax=b\).

Therefore, we add two sets of linear constraints to our linear system:

  • For any pair of boundary vertices distanced by 2 units in one direction, the new coordinates should differ by 2 units.
  • For any pair of boundary vertices matched in the two other directions, the new coordinates should differ by 0.

We construct a selection matrix \(A\), which is a #pairs of boundary vertices in \(G\) by #vertices sparse matrix, to get the distance between any pair of boundary vertices. For every \(r\)th row, \(A(r,i)=1, A(r,j)=-1.\)$

Then we need to construct 3 \(b\) vectors, each of which is a sparse square matrix of the size [# of vector pairs of boundary vertices in G for a 3D coordinate (x,y,z)]. Based on whether at one given moment we are working with \(G_x\), \(G_y\), or \(G_z\), we enter \(2\) for those selected pairs, and \(0\) for the rest.

V. Correct Outcomes

Below, we can see the algorithm being correctly implemented. Each video represents a different mesh.

VI. Aesthetically Pleasing Bugs

Nothing is perfect, and coding in Matlab is no exception. We went through many iterations of our code before we got a functional version. Below are some examples of cool-looking bugs we encountered along the way, while testing the code on (what has become) one of our favorite shapes. Each video represents a different bug applied onto the same mesh.

VII. Conclusion and Future Work

Further work may include studying the physical properties of nonmanifold TPMS. It may also include additional basic structural simulations for physical properties, and establishing a comparison between the results for nonmanifold surfaces and the existing results for manifold surfaces.

Additional goals may be of computational or algebraic nature. For example, one can write scripts to generate many possible initial conditions, then use code to convert the surfaces with each of these conditions into minimal surfaces. An algebraic goal may be to enumerate all possible possibly-nonmanifold structures and perhaps categorize them based on their properties. This is, in fact, an open problem.

The possibilities are truly endless, and potential directions depend on the interests of the group of researchers undertaking this project further.

Math SGI research projects

Elastic curves and active bending

By: Judy Chiang, Natasha Diederen, Erick Jimenez Berumen

Project mentor: Christian Hafner

Architects often want to create visually striking structures that involve curved materials. The conventional way to do this is to pre-bend materials to form the shape of the desired curve. However, this generates large manufacturing and transportation costs. A proposed alternative to industrial bending is to elastically bend flat beams, where the desired curve is encoded into the stiffness profile of the beam. Wider sections of the beam will have a greater stiffness and bend less than narrower sections of the beam. Hence, it is possible to design an algorithm that enables a designer or architect to plan curved structures that can be assembled by bending flat beams. This is a topic currently being explored by Bernd Bickel and his student Christian Hafner (our project mentor).

A model created using the concept of active bending (source)

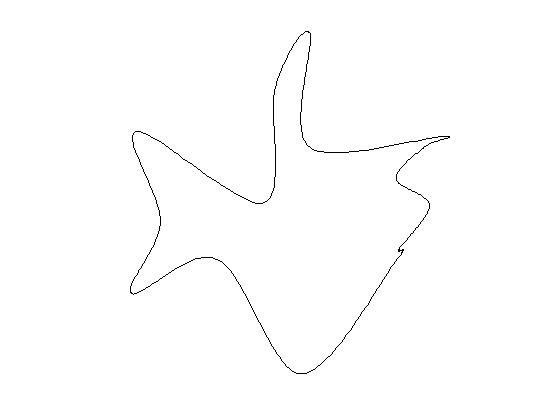

For the flat beam to remain bent as the desired curve, we must ensure that the beam assumes this form at its equilibrium point. In Lagrangian mechanics, this occurs when energy is minimised, since this implies that there is no other configuration of the system which would result in lower overall energy and thus be optimal instead. Two different questions arise from this formulation. First, given the stiffness profile \(K\), what deformed shapes \(\gamma\) can be generated? Second, given a curve \(\gamma\), what stiffness profiles \(K\) can be generated? In answering the first problem we will find the curve that will result from bending a beam with a given width profile. However, we are more interested in finding the stiffness profile of a beam which will result in a curved shape \(\gamma\) of our choice. Hence, we wish to solve the second problem.

Below, we will give a full formulation of our main problem, and discuss how we transformed this into MATLAB code and created a user interface. We will conclude by discussing a more generalised case involving joint curves.

Problem formulation

To recap, the problem we want to solve is, given a curve \(\gamma \), what stiffness profiles \(K\) can be generated? For each point \(s\) on our curve \(\gamma: (0,\ell) \to \mathbb{R}^2\), we have values for the position \(\gamma(s)\), turning angle \(\alpha(s)\), and signed curvature \(\alpha'(s)\). In addition, we define the energy of the beam system to be \[W[\alpha] := \int_0^\ell K(s)\alpha'(s)^2 ds,\] where \(K(s)\) is the stiffness at point \(s\). At the equilibrium state of the system, \(W[\alpha]\) will take a minimum value. Intuitively, this implies that, in general, regions of larger curvature will have a lower stiffness. However, it is not true that two different points of equal curvature will have equal stiffness, since there are other factors at play.

Now, before finding the \(K\) that minimises \(W[\alpha]\), we must set additional constraints \[\alpha(0) = \alpha_0, \quad \alpha(\ell) = \alpha_\ell\] and \[\gamma(0) = \gamma_0, \quad \gamma(\ell) = \gamma_\ell.\] In words, we are fixing the turning angles (tangents) and positions of the two boundary points. These constraints are necessary, since they dictate the position in space where the curve begins and ends, as well as the initial and final directions the curve moves in.

We have now formulated a problem that can be solved using variational calculus. Without going into detail, we find that stationary points of this function are given by the equation \[K \kappa = a + \langle b, \gamma \rangle,\] where \(\kappa\) is the signed curvature (previously \(\alpha’\)), and \(a \in \mathbb{R}\) and \(b \in \mathbb{R}^2\) are constants to be found. However, a stiffness profile cannot be generated for all curves \(\gamma\). More specifically, it was shown by Bernd Bickel and Christian Hafner that a solution exists if and only if there exists a line \(L\) that intersects \(\gamma\) exactly at its inflections. With this information in hand, we can begin to create a linear program that computes the stiffness function \(K\).

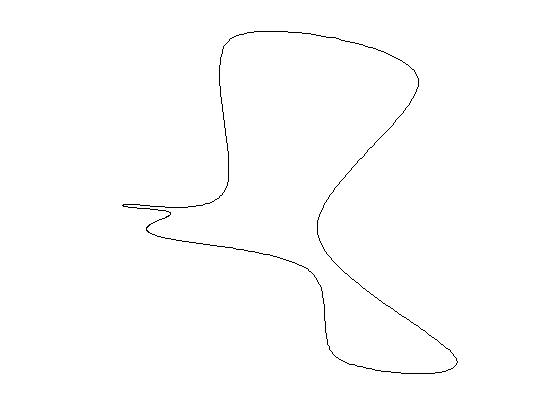

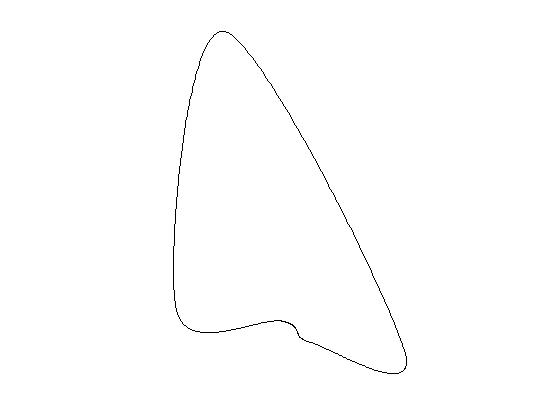

The top four curves can be created using active bending, but the bottom four cannot (source)

Creating a linear programme

In order to find the stiffness \(K\), we need to solve for the constants \(a\) and \(b\) in the equation \( K \kappa = a + \langle b, \gamma \rangle \), which can be discretised to \[ K(s_i) = \frac{a + \langle b, \gamma(s_i) \rangle }{\kappa(s_i)}.\] It is possible that there is more than one solution to \(K\), so we want some way to determine the “best” stiffness profile. If we think back to our original problem, we want to ensure that our beam is maximally uniform, since this is good for structural integrity. Hence, we solve for \(a\) and \(b\) in the above inequality in such a way that the ratio between maximum and minimum stiffness is minimised. To do this we set the minimum stiffness to an arbitrary value, for example 1, and then constrain \(K\) between 1 and \(M = \text{min}_i K_i\), thus obtaining the inequality \[1 \leq \frac{a + \langle b, \gamma(s_i) \rangle }{\kappa(s_i)} \leq M.\] This can be solved using MATLAB’s linprog function (read the documentation here). In this case, the variables we want to solve for are \(a \in \mathbb{R}\), \(b \in \mathbb{R}^2\), and \(M\) (a scalar we want to minimise). So, using the linprog documentation \(x\) is the vector \((a,b_1,b_2,M)\) and \(f\) is the vector \((0,0,0,1)\), since \(M\) is the only variable we want to minimise. Since linprog only deals with inequalities of the form \(A \cdot x \leq b\), we can split the above inequality into two and write it in terms of the elements of \(x\), like so: \[-\Bigg(\frac{1}{\kappa(s_i)}a + \frac{\gamma_x(s{i})}{\kappa(s_i)}b_1 + \frac{\gamma_y(s_{i})}{\kappa(s_i)}b_2 + 0\Bigg) \leq -1,\] \[\frac{1}{\kappa(s_i)}a + \frac{\gamma_x(s_{i})}{\kappa(s_i)}b_1 + \frac{\gamma_y(s_{i})}{\kappa(s_i)}b_2 -M \leq 0.\]
These two equations are of a form that can be easily written into linprog to obtain the values of \(a\), \(b\) and \(M\) and hence \(K\).

User Interface

Once we solved the linear program outlined above, we created a user interface in MATLAB that would allow users to draw and edit a spline curve and see the corresponding elastic strip created in real time. Custom splines can be imported as a .txt file in the following format

or alternatively, the file that is already in the folder can be used. Users can then run the user interface and edit the spline in real time. To add points, simply shift-click, and a new point will be added at the midpoint between the selected point and the next point. The user can right-click to delete a point, and left-click and drag to move points around. If there are zero or one control points remaining, then the user can add a new point where their mouse cursor is by shift-clicking. The number of control points must be greater than or equal to the degree plus one for the spline to be formed.
There are certain cases in which the linear program cannot be solved. In these cases the elastic strip is not plotted, and the user must move the control points around until it is possible to create a strip.

Demonstration of the user interface

Here is the link to the GitHub repository, for those who want to try the user interface out.

Joints Between Two or More Strips

The current version of our code is able to generate elastic strips for any (feasible) spline curve generated by the user. However, an as of yet unsolved problem is the feasibility condition for a pair of elastic strips with joints. Solving this problem would allow us compute a pair of stiffness functions \(K_1\) and \(K_2\) that yield elastic strips that can be connected via slots at the fixed joint locations. With a bit of maths we were able to derive the equilibrium equations that would produce such stiffness functions. Suppose the two spline curves are given by \(\gamma_{1}: [0,\ell_{1}] \to \mathbb{R}^2\) and \(\gamma_{2}: [0,\ell_{2}] \to \mathbb{R}^2\) and that they intersect at exactly one point such that \(\gamma_{1}(t_a) = \gamma_{2}(t_b)\). Then we must solve the following two equations: \[ K_{1}(t) \kappa_{1}(t) = \left \{ \begin{array}{ll} a_1 + \langle b_1, \gamma_{1}(t) \rangle + \langle c, \gamma_{1}(t) \rangle & 0 \leq t \leq t_a \\ a_1 + \langle b_1, \gamma_{1}(t) \rangle + \langle c, \gamma_{1}(t_a) \rangle & t_a < t \leq \ell_{1} \end{array}\right. \] \[ K_{2}(t) \kappa_{2}(t) = \left \{ \begin{array}{ll} a_2 + \langle b_2, \gamma_{2}(t) \rangle – \langle c, \gamma_{2}(t) \rangle & 0 \leq t \leq t_b \\ _2 + \langle b_2, \gamma_{2}(t) \rangle – \langle c, \gamma_{2}(t_b) \rangle & t_b < t \leq \ell_{2} \end{array}\right. \]

Similar to the one-spline case, these can be translated into a linear program problem which can be solved. Due to the time constraint of this project, we were not able to implement this into our code and build an associated user interface for creating multiple splines. Furthermore, above we have only discussed the situation with two curves and one joint. Adding more joints would increase the number of unknowns and add more sections to the above piece-wise-defined functions. Lastly, we are still lacking a geometric interpretation for the above equations. All of these issues regarding the extension to two or more spline curves would serve as great inspiration for further research!

Math SGI research projects

2D Cut Optimization

Or how to figure out the right way to skin a cat (for texture mapping)

By: Kirby Dietz and Bonnie Magland, mentored by Yusuf Sahillioglu


For the past two weeks, we have been doing research on how to optimize making 2D cuts onto a surface such that we get an optimal parameterization of the surface onto a disk. This question more generally is asking how we can take a triangulated surface and perform operations on it such that we see a representation of this surface on a disk that we can apply texture mapping or other various changes to.

Firstly let us explain why we want to make these cuts. We make these cuts so that we can use existing methods of disk parameterization from a surface with a boundary onto a disk. We can also think about making a 2D surface from our 3D surface using cuts in a more intuitive way. We can think about it like how a net works, that we know it is true that if we took enough cuts it would be true that we get a locally distortion free 2D representation of the surface; however doing this would both be computationally intensive and not very useful for performing tasks that we want, such as texture mapping, and it does not give an intuitive understanding of what the general surface is or what each section of the 2D map corresponds with each section of the surface. Thus the question becomes how do we take a minimal amount of cuts such that we have a 2D parameterization of the surface that minimizes distortion such that we can still use it for various texture mapping applications.

Disk Parameterization:

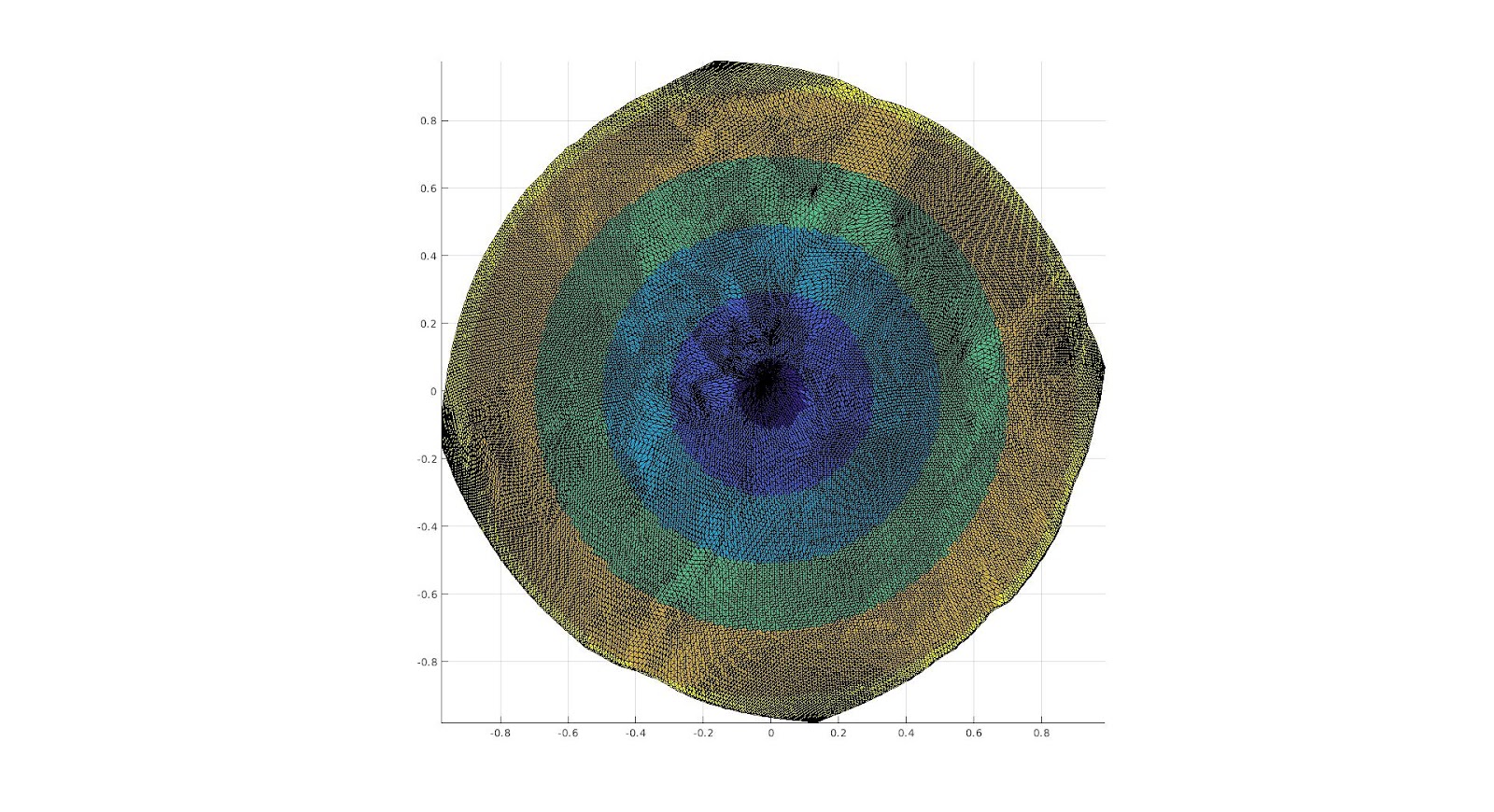

First we worked on mapping 3D meshes with existing boundaries to a disk. We implemented existing methods of disk conformal parameterization using three different weight functions. We start by mapping the mesh boundary to the circle, preserving the distance between chord edges. Placing the interior points is then a matter of solving a system of linear equations. In our first weighting method, each edge is weighted the same so in the resulting disk, interior points are the centroid of their neighbors. This gives one linear equation for each interior point, and since the boundary points are fixed, we can solve for the exact locations of each point on the disk.

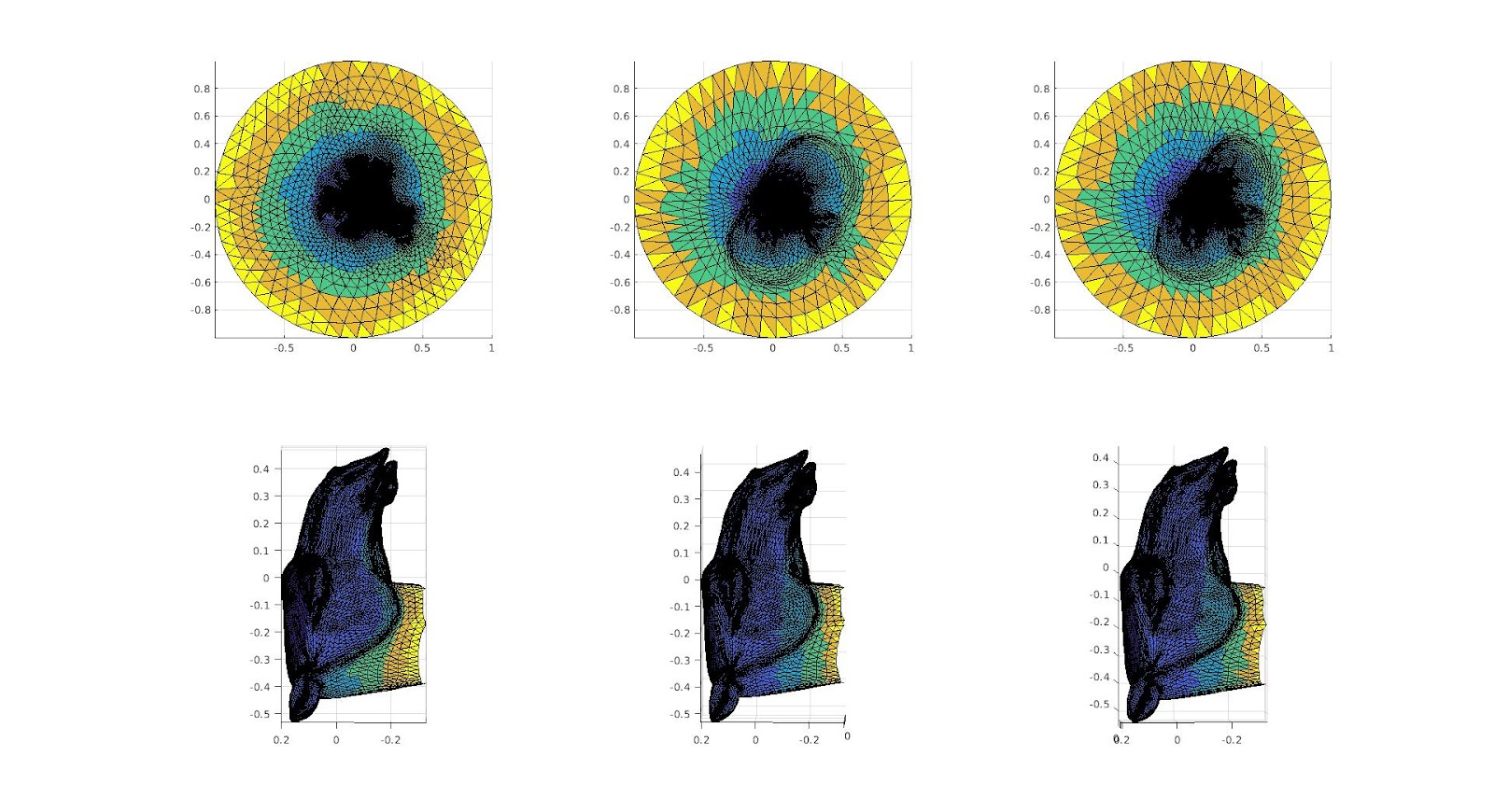

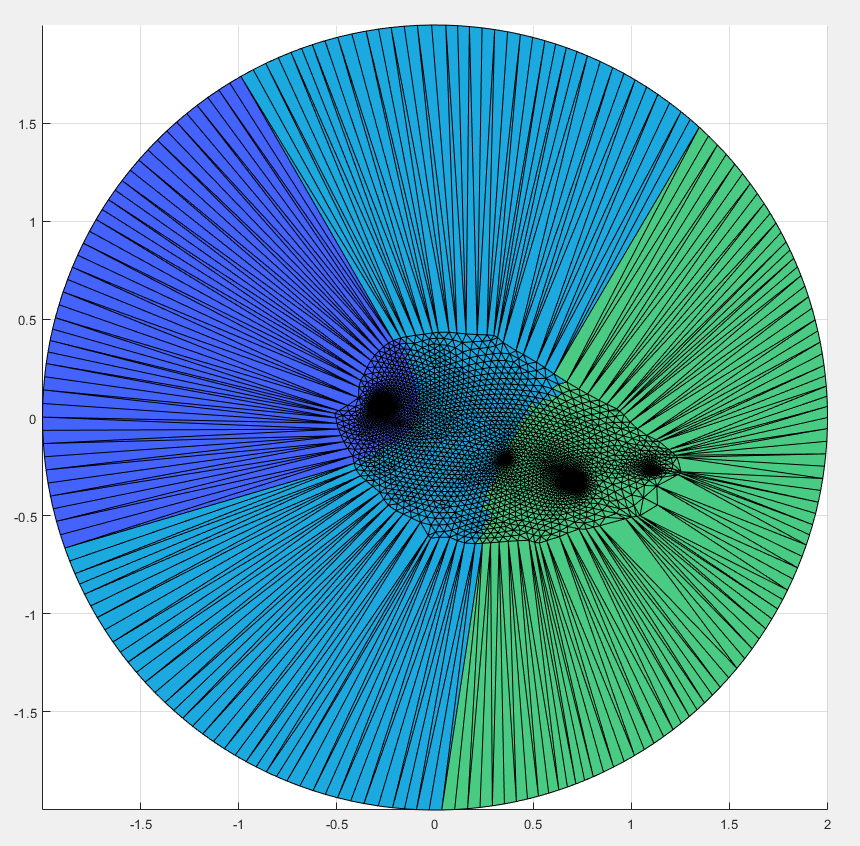

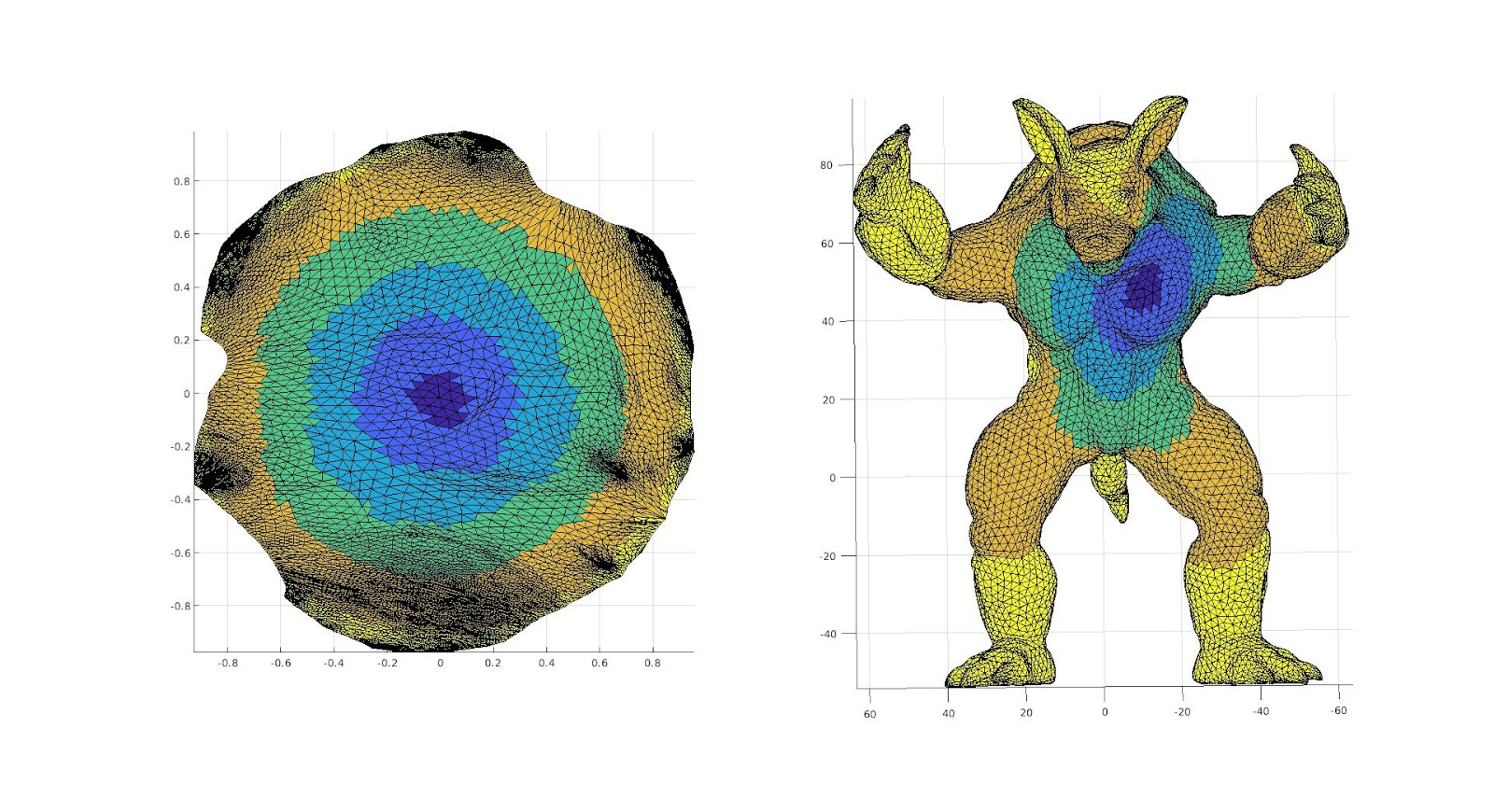

Weighing each edge uniformly results in unnecessary distortion. Our second and third methods use the angles in the faces sharing the edge to add weights to the equations in the first method.  The second method uses harmonic weights, with formula \(w_{i,j}=\frac{1}{2}\left( cot(i,j) + cot(i,j)\right)\) where \(\alpha_{i,j}\) and \(\beta_{i,j}\) are the angles opposite the edge connecting the \(i\) and \(j^{th}\) vertices. These weights reduce distortion, but obtuse angles can result in negative weights, so the resulting map is not guaranteed to be bijective. The third method, mean value weights, resolves this by instead using  \(w_{i,j}=\frac{tan(\frac{\gamma_{i,j}}{2}) + tan(\frac{\delta_{i,j}}{2})}{2|| v_i – v_j ||}\) where \(\gamma_{i,j}\) and \(\delta_{i,j}\) are the angles adjacent to the edge connecting the \(i\) and \(j^{th}\) vertices. In our future disk parameterizations, we use these last two methods.

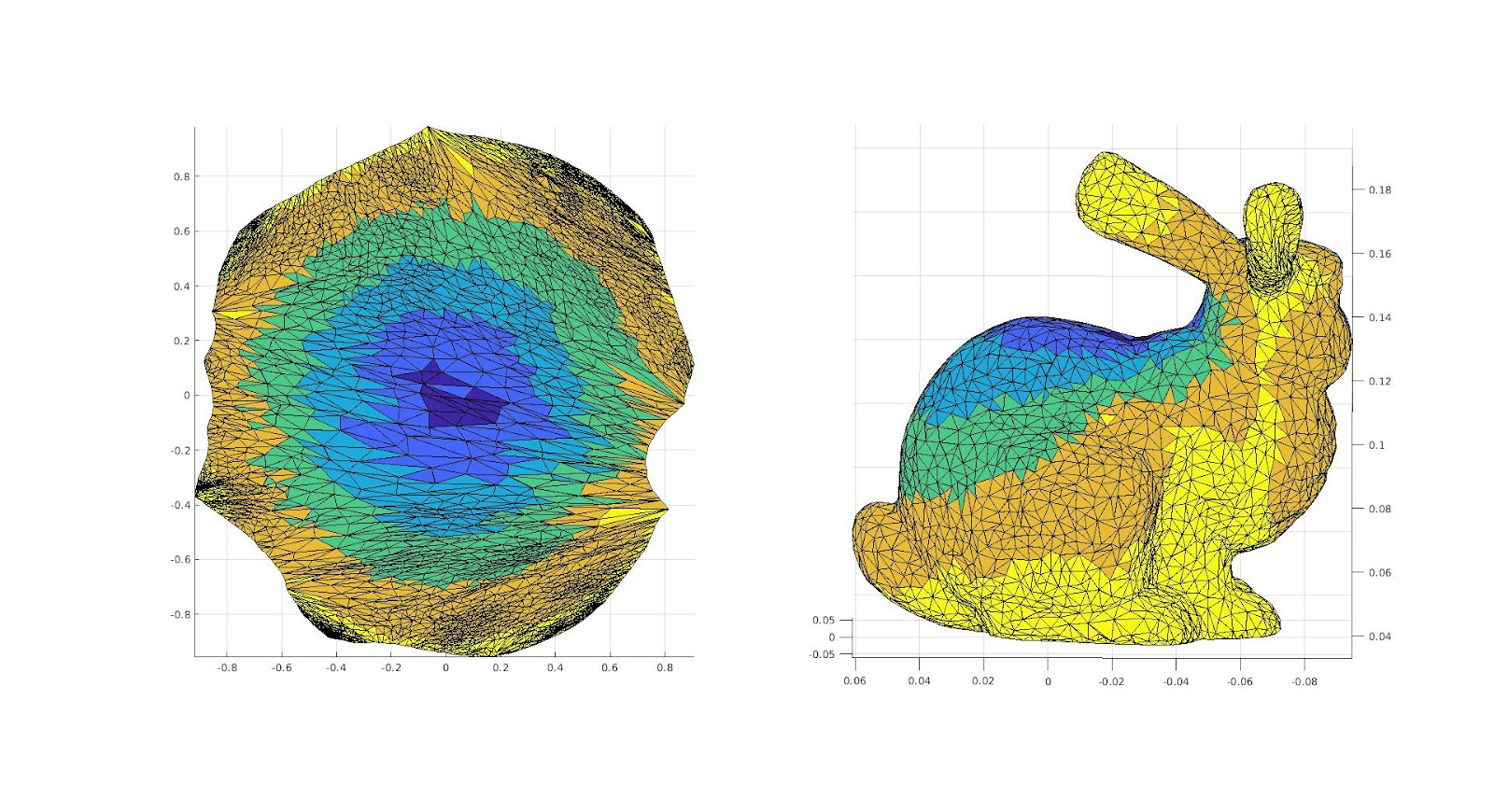

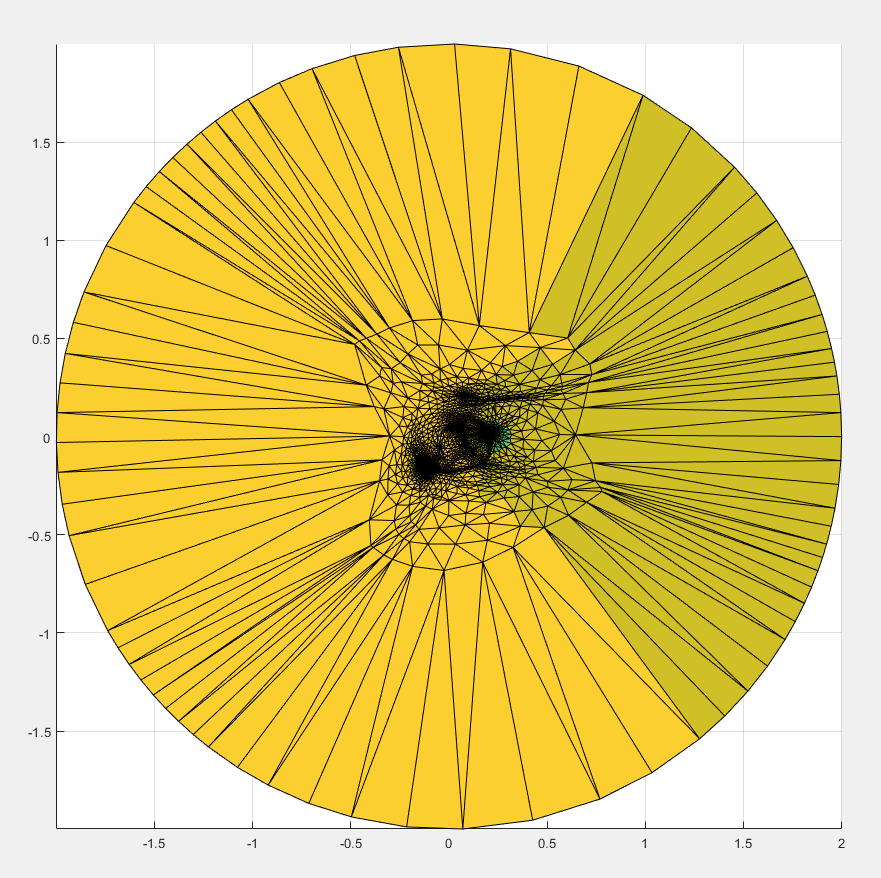

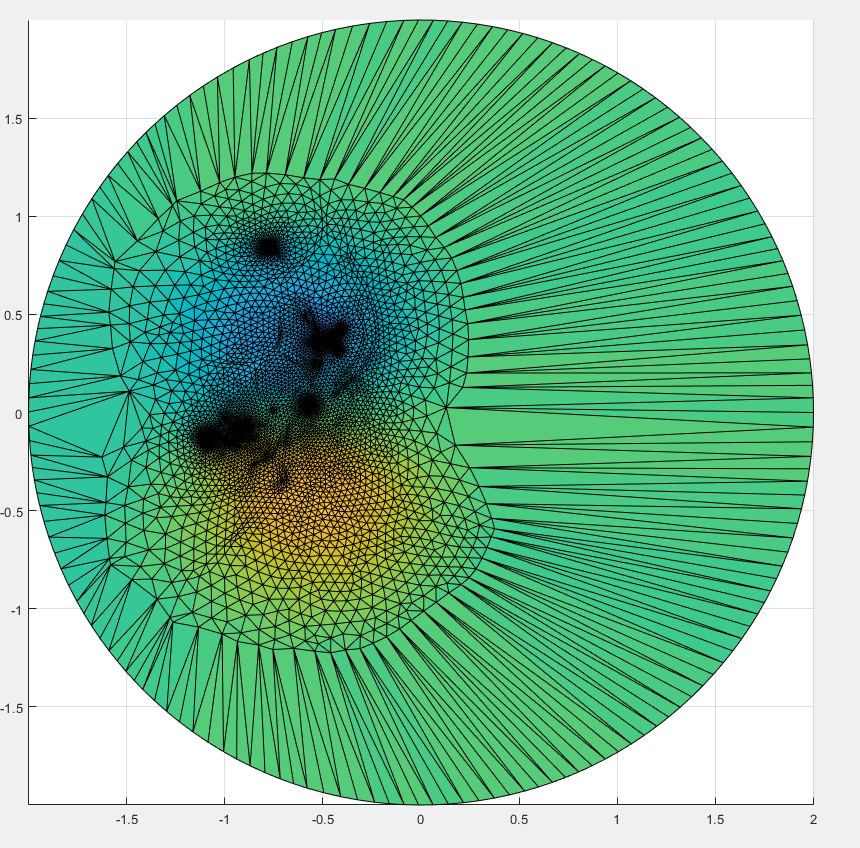

Methods 1, 2, and 3 from left to right

Virtual Boundary:

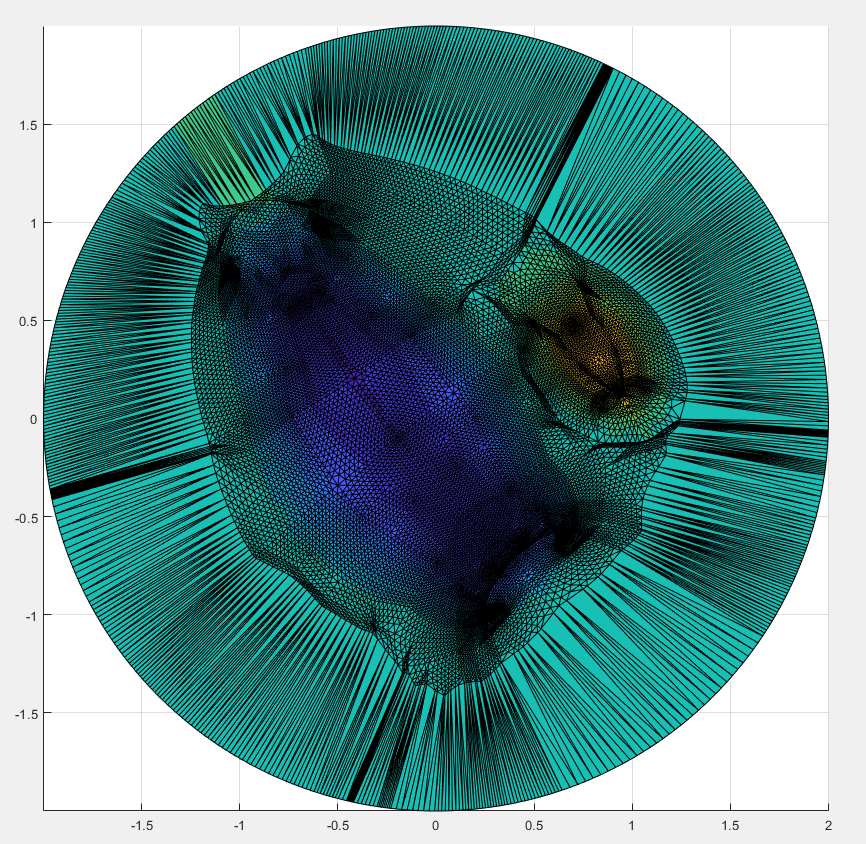

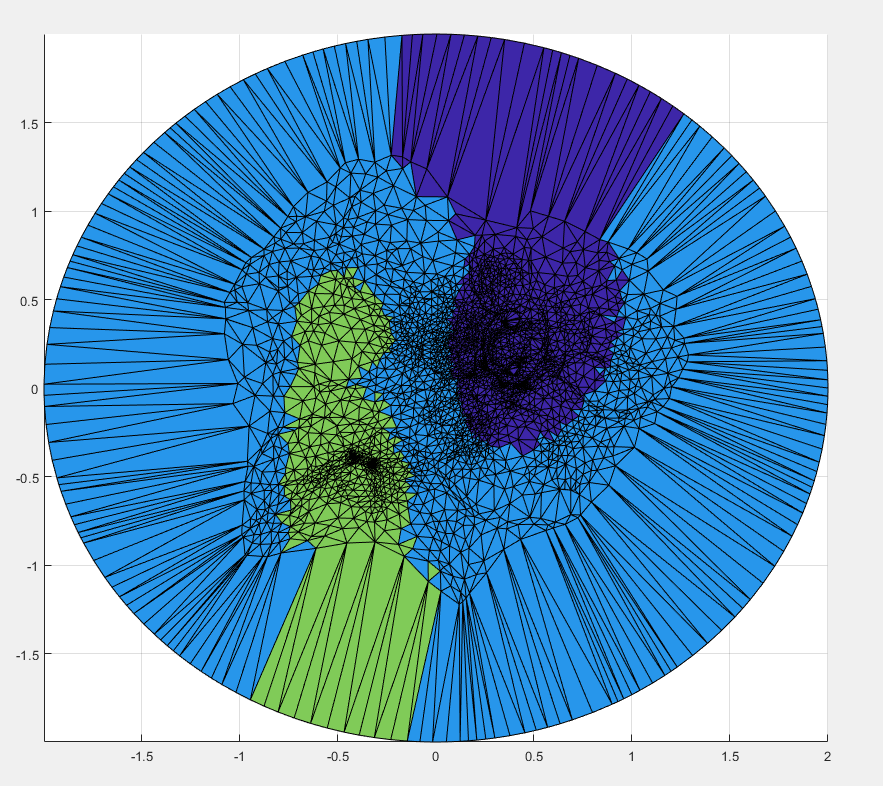

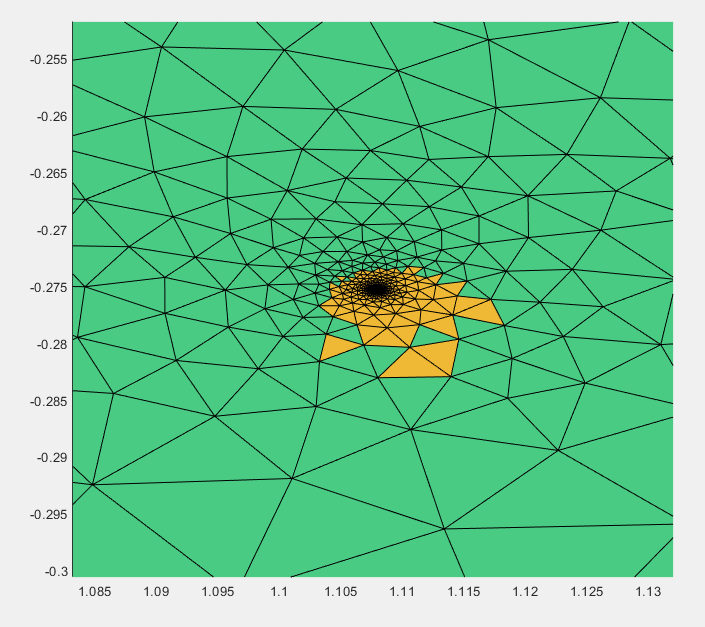

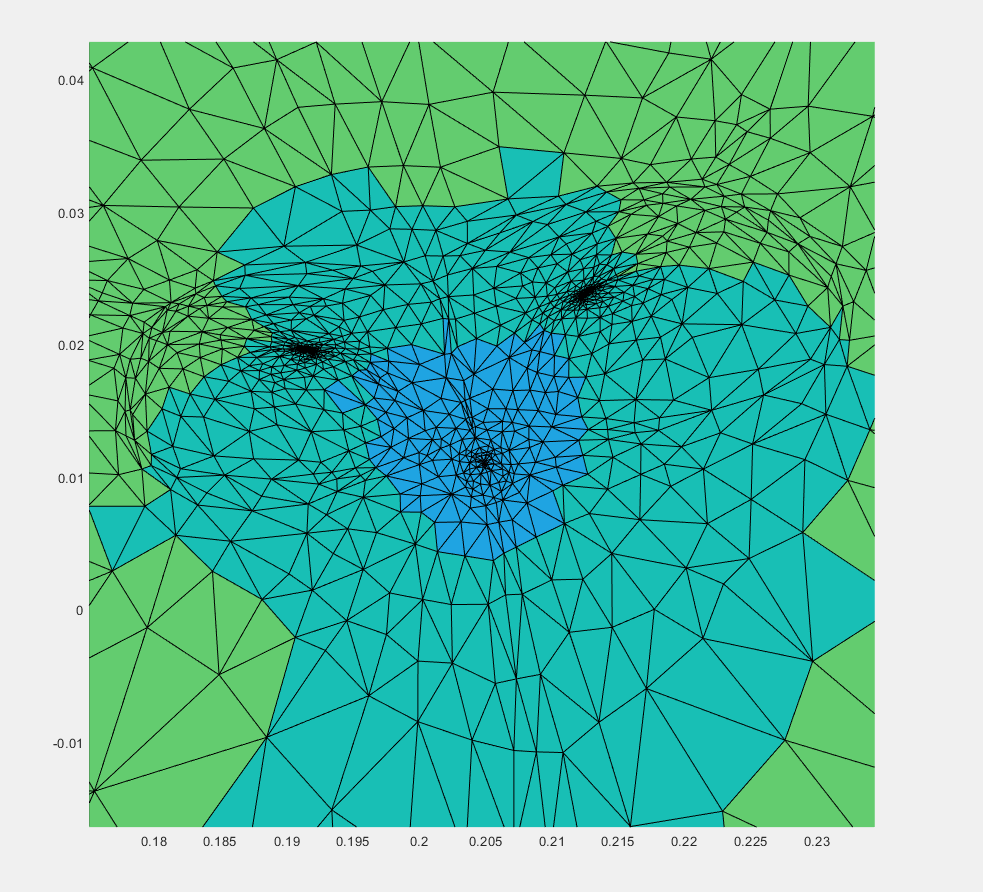

A downside to disk parametrization is that because the boundary has a fixed mapping to the circle, the resulting parameterization has a lot of distortion near the perimeter. There are a variety of free-boundary parameterization methods, but we focused on the virtual boundary method. By adding one or more layers of faces to the existing boundary, we create a new, virtual boundary that is mapped to the circle while the real boundary is allowed a less constrained shape. We can then ignore the added faces and use the resulting parameterization. The more layers in the virtual boundary, the more “free” the resulting boundary. For example, the mountain range mesh below has a boundary that is more rectangular in shape than circular. As we add more layers to the virtual boundary parameterization, we can see the outline become more square as well.

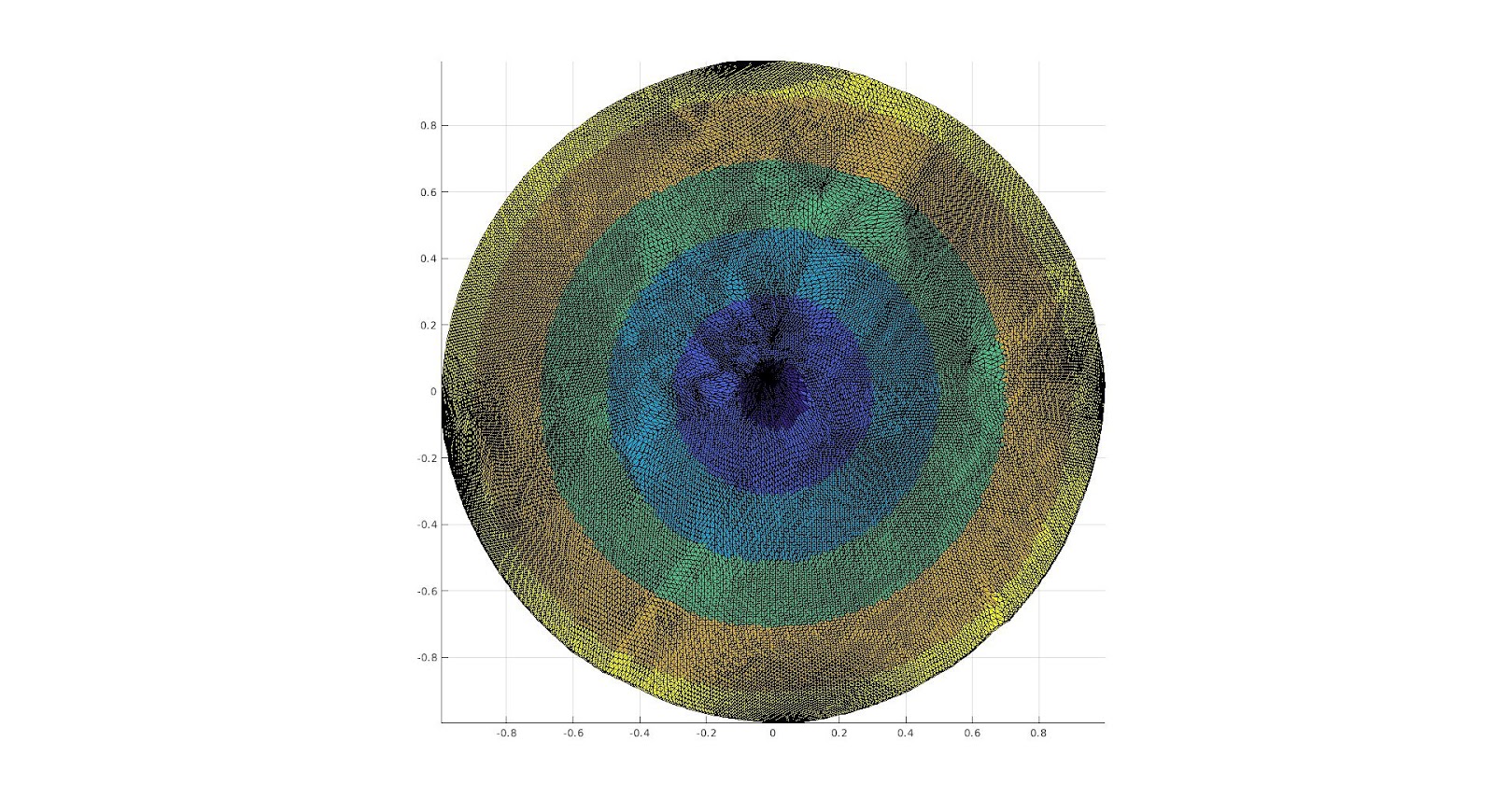

1 Layer5 Layers10 Layers

However, it is not always necessary to add multiple layers, but instead simply increase the size of the virtual boundary, this is due to how the virtual boundary is created following the method used in “Parametrization of Triangular Meshes with Virtual Boundaries” by Yunjin Lee, Hyoung Seok Kim, and Seungyong Lee. We create the virtual boundary by listing the vertices in the existing boundary as \(v_1,v_2,\dots,v_n\) and label the vertices in the virtual boundary \(v’_1,v’_2,\dots,v’_{2n}\) where \(v_i\) corresponds to \(v’_{2i}\), we then make sure the distance between \(v_i , v_{i+1} \) proportional to the distance between \(v_{2i} , v_{2i+2}\) and assigning \(v_{2i+1}\) to the midpoint between the two, to do this we simply say that \(v_{2i}=av_i\). Thus we can increase the size of the virtual boundary simply by increasing the a value, this allows a quicker method of getting a virtual boundary that gives the same results as running multiple layers of virtual boundaries.

a = 1.05a = 1.5

Many meshes that we want to parameterize in 2D do not have boundaries. In order to do this, we make a cut along existing edges in the mesh to create our own boundary. A cut can be visualized as exactly how it sounds—taking a pair of scissors and slicing through the mesh. It is created from a path of edges by duplicating the non-endpoint vertices in the path, and connecting them to create a loop of boundary edges. This connected loop will naturally form by reassigning the faces on one side of the path to contain the new vertices rather than the old duplicated vertices.

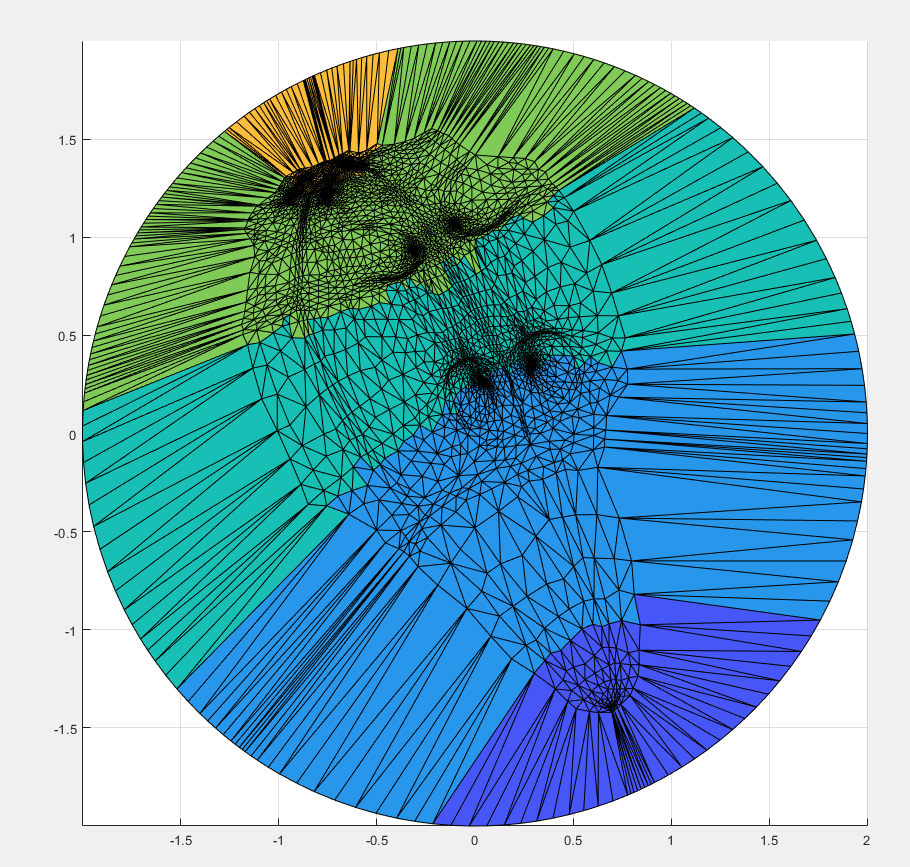

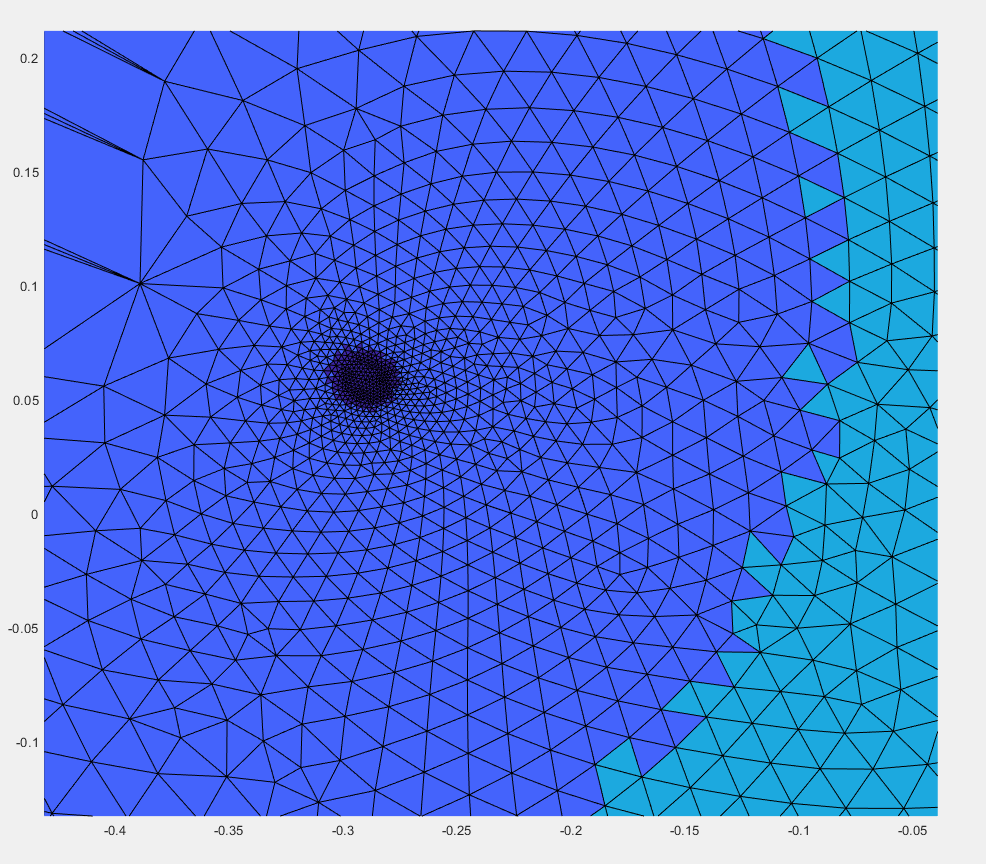

The trouble comes with determining which side of the cut each face is on. We created our own cutting algorithm, and solved this problem by using the orientation of the faces with edges on the path. Given a directed path, the faces with edges on one side of the path will be oriented in the direction of the path, while the faces on the other side will be oriented in the opposite direction. Thus we can easily separate the faces sharing edges along the cut. A more difficult task is separating the faces that only share one vertex with the cut path. To solve this quickly, we store the directions of edges coming from each point on the path that are confirmed to be on one side of the path. We then can determine which side of the path a face is based on how close its edges’ direction is to these edges. There are conceivable shares which will cause this to fail, but in practice this can quickly implement the vast majority of cuts.

We also tried a different algorithm to determine which side of the cut each face is on, making use of geometric properties of the surface, in specific the normal of the surface. We compared the normal of the face to the normal of the edge on the cut. We took the plane defined by the normal on the cut, and compared if the normal of the face projected onto the plane was on the left or right of the plane, when considering the y-axis of the plane to be the edge. This result showed initial success, and continuous to work along small cuts, or cuts along areas of low curvature, however when dealing with areas of large curvature the cut has a large issue, that is when the surface has high curvature it is possible for the edge to be behind the surface with respect to where the edge is, which gives the normal on the other side than we desire, and thus gives it to be on the right when it is on the left, and other such issues, for this reason we have discarded this approach, however we are open to the possibility that using some operation on the normals it might be possible to use this approach.

Euclidean Max Cut:

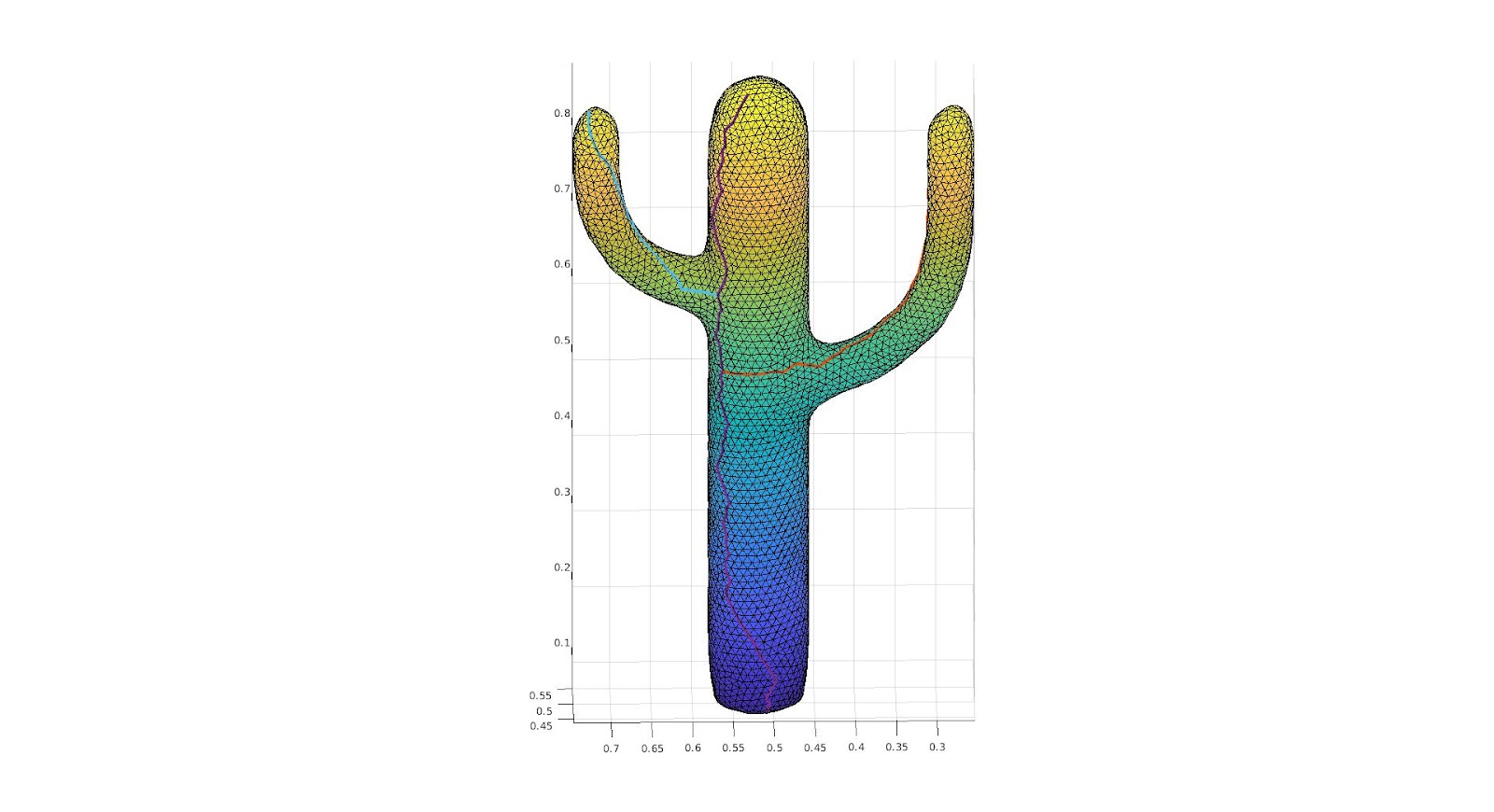

Now let us discuss our main method of how to choose a cut to make, we considered existing methods, namely the method of using a minimal spanning tree as used by Alla Sheffer in “Spanning Tree Seams for Reducing Parametrization Distortion of Triangulated Surfaces,” seemed to have the opposite desire than we want, that is, to minimize the size of the cut. It is clear simply from the boundaries we were provided as well as intuition that the larger the cut the smaller the distortion would be, as if we had a large enough cut there would be no distortion, however we also know that artifacts exist along the cuts, thus we created a new method. This method was a way of maximizing the distance of the cut while minimizing the artifacts. This was maximizing the Euclidean distance between the end points of the path of the cut while making the cut that takes the minimum geodesic distance.

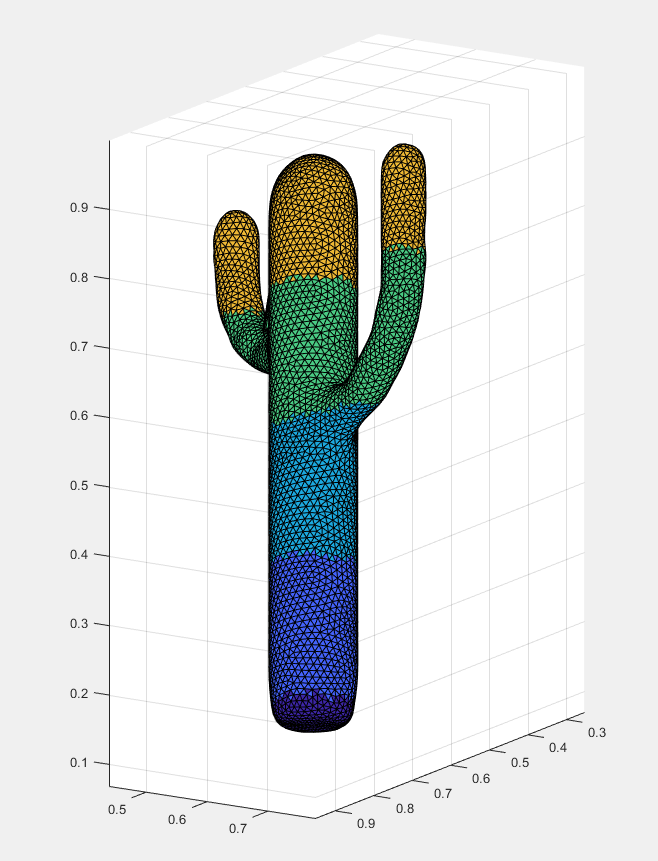

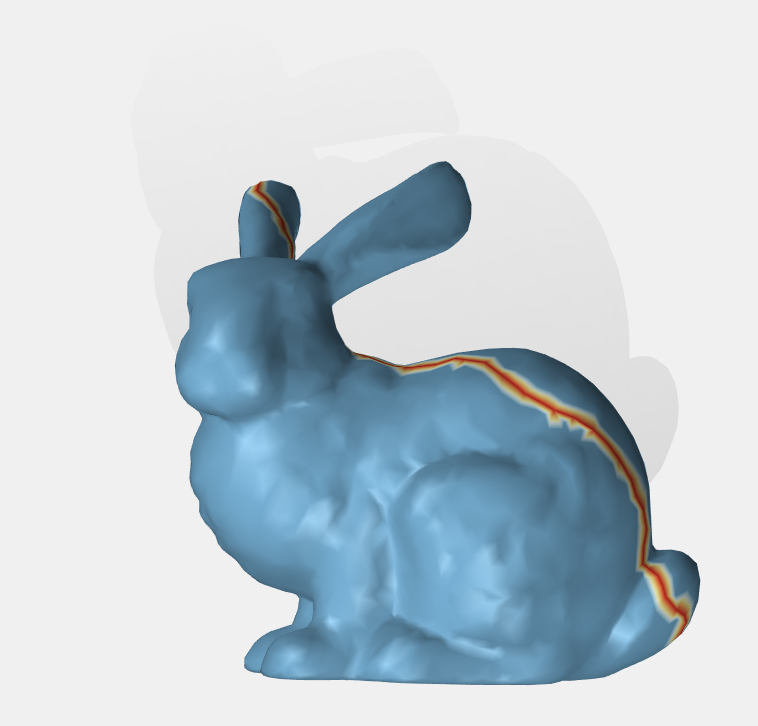

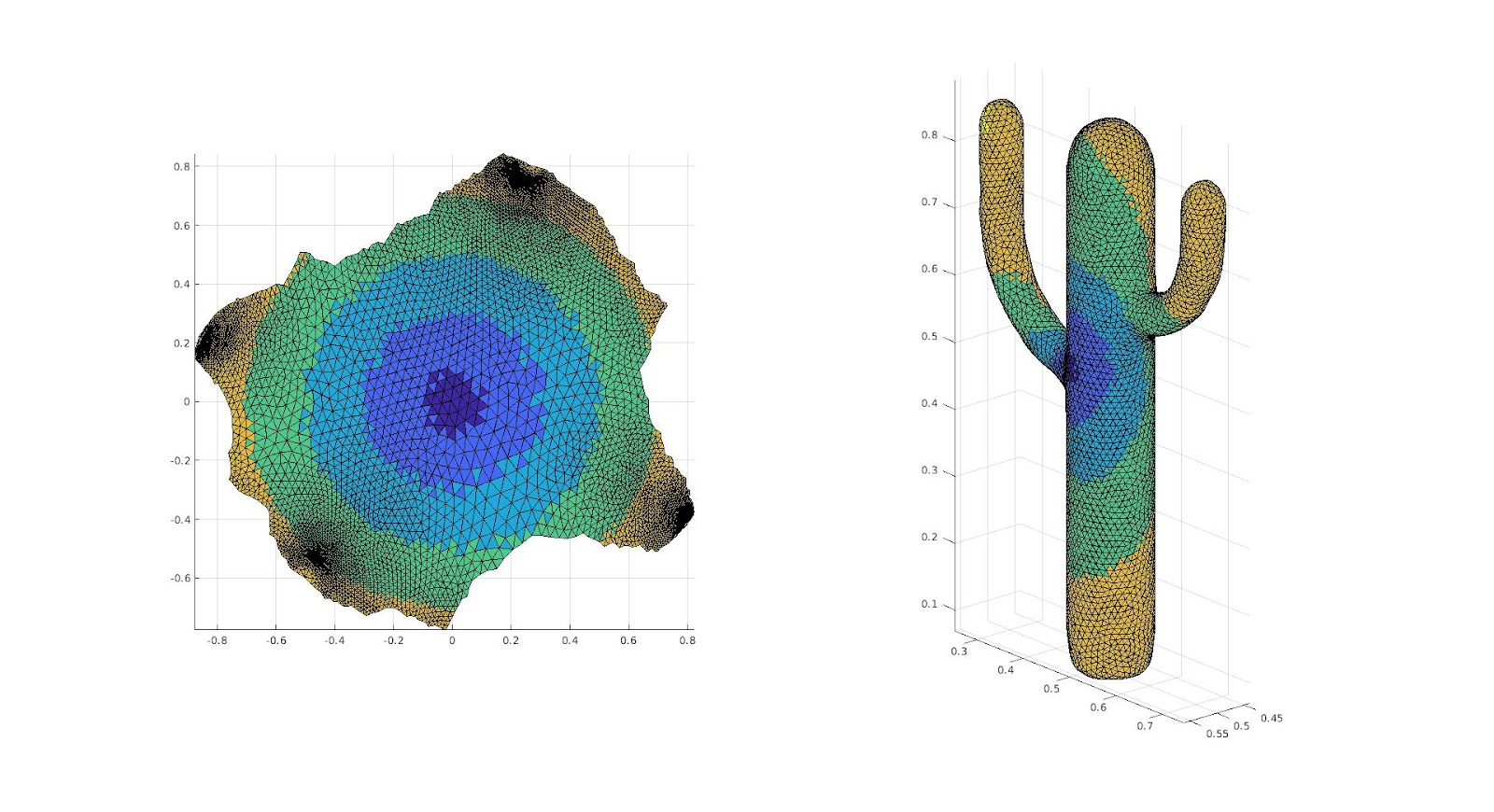

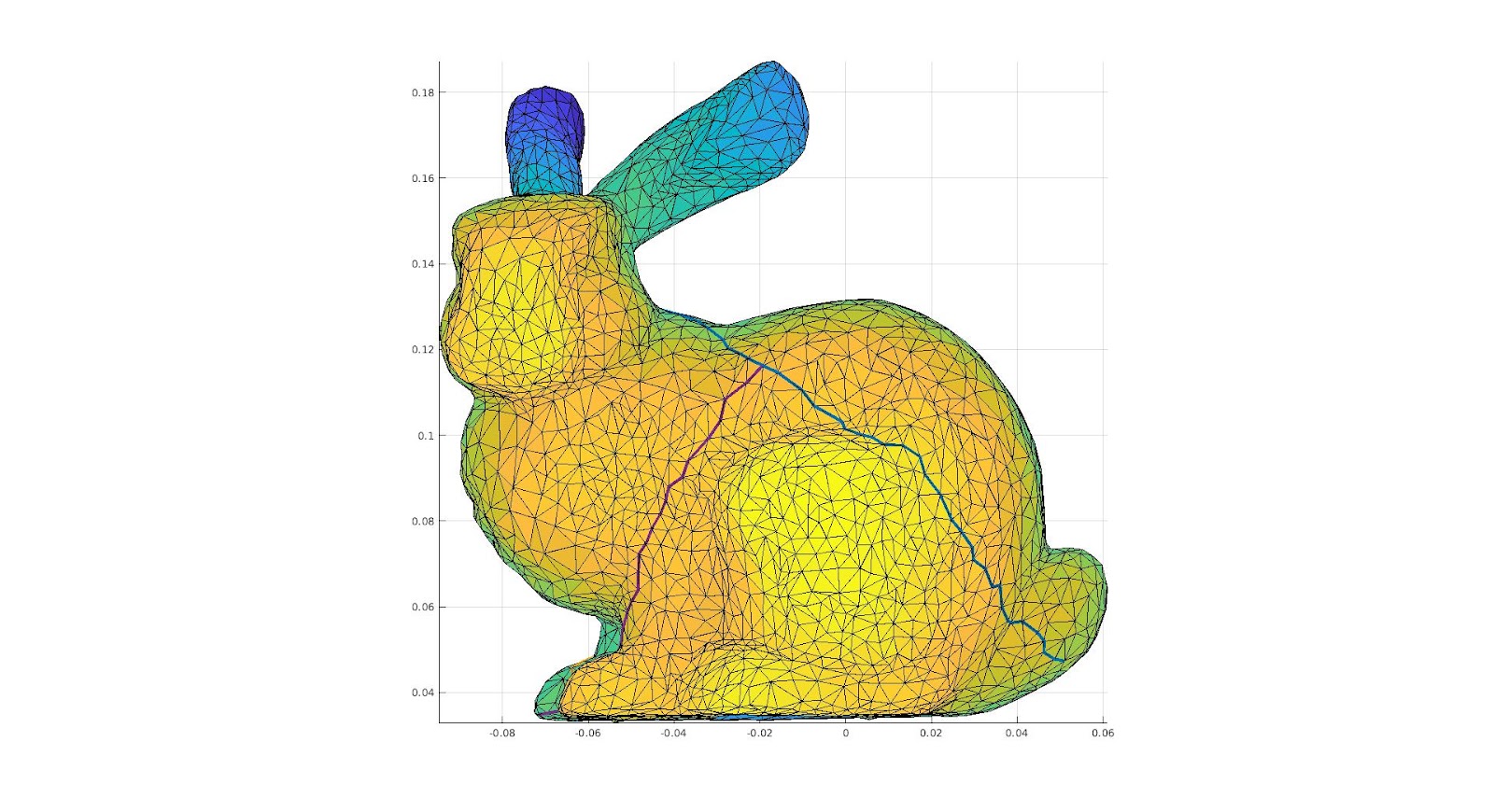

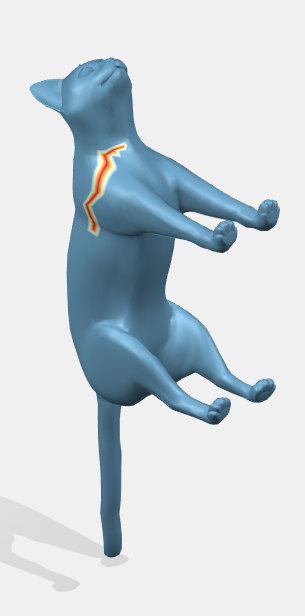

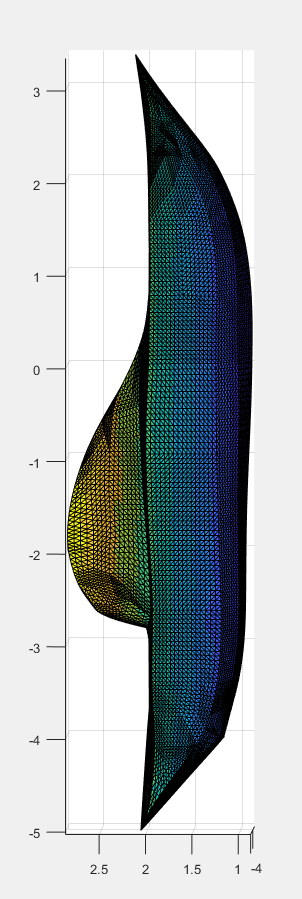

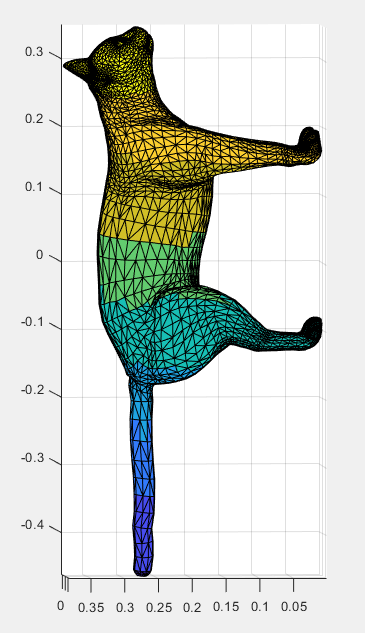

The surface, and the cut we are making upon it.A color function we add to the surface in order to see where different areas are mapped onto a 2D Parameterization.The 2D Parameterization with Virtual Boundary.
The surface, and the cut we are making upon it.A color function we add to the surface in order to see where different areas are mapped onto a 2D Parameterization.The 2D Parameterization with Virtual Boundary.
The surface, and the cut we are making upon it.A color function we add to the surface in order to see where different areas are mapped onto a 2D Parameterization.The 2D Parameterization with Virtual Boundary.
The surface, and the cut we are making upon it.A color function we add to the surface in order to see where different areas are mapped onto a 2D Parameterization.The 2D Parameterization with Virtual Boundary.

As we can see however this creates unintuitive cuts, and cuts that do not have our desired purpose, for this we considered a new method of cuts.

Medial Mesh Max Cut:

To deal with this issue, we implemented a new method using the medial mesh, that is we consider a simplified mesh of the object making use of the midpoints of the faces within the interior of the surface. We did not do implementation of finding this medial mesh ourselves, rather using the code created in “Q-MAT: Computing Medial Axis Transform by Quadratic Error Minimization” by Pan Li, Bin Wang, Feng Sun, Xiaohu Guo, Caiming Zhang and Wenping Wang. We then after obtaining the Medial Mesh, create the minimal spheres on each vertex, that is the smallest sphere with the center at a vertex in the medial mesh, such that it intersects with a vertex on the surface. We then created a graph with vertices representing the spheres, and creating an edge if the spheres overlap, we then calculated the maximum path existing on the graph, with the edge lengths equal to the distance between the center of the spheres. We then identified the vertices on the surface such that they were the closest to the points on each sphere such that the Euclidean distance between the two end point spheres is maximized, we use these as the two points to create a cut on and we create a cut with the minimum geodesic distance between the two points. This was hopefully to avoid areas of high curvature, and thus create a better cut still of a reasonably large size.

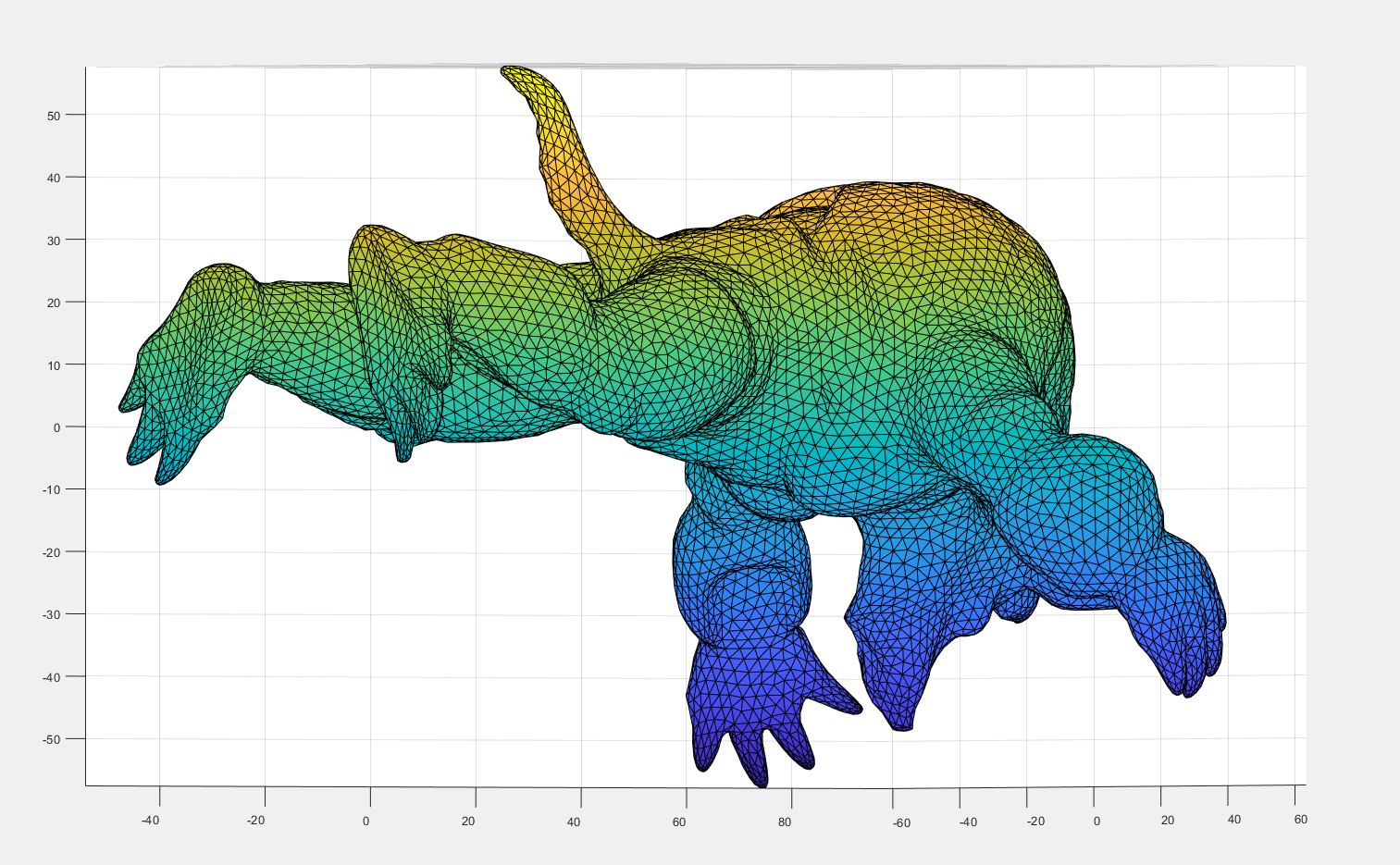

The surface, and the cut we are making upon it.A color function we add to the surface in order to see where different areas are mapped onto a 2D Parameterization.The 2D Parameterization with Virtual Boundary.
The surface, and the cut we are making upon it.A color function we add to the surface in order to see where different areas are mapped onto a 2D Parameterization.The 2D Parameterization with Virtual Boundary.
The surface, and the cut we are making upon it.A color function we add to the surface in order to see where different areas are mapped onto a 2D Parameterization.The 2D Parameterization with Virtual Boundary.

Of note is that areas that are not on the cut area directly are “tucked in” so to into the areas that we can barely see. The one below is in the left area with a high density of vertices. The rest follow from left to right the areas of high vertices.

The surface, and the cut we are making upon it.A color function we add to the surface in order to see where different areas are mapped onto a 2D Parameterization.The 2D Parameterization with Virtual Boundary.

We again get areas of high curvature being sort of tucked into the surface.

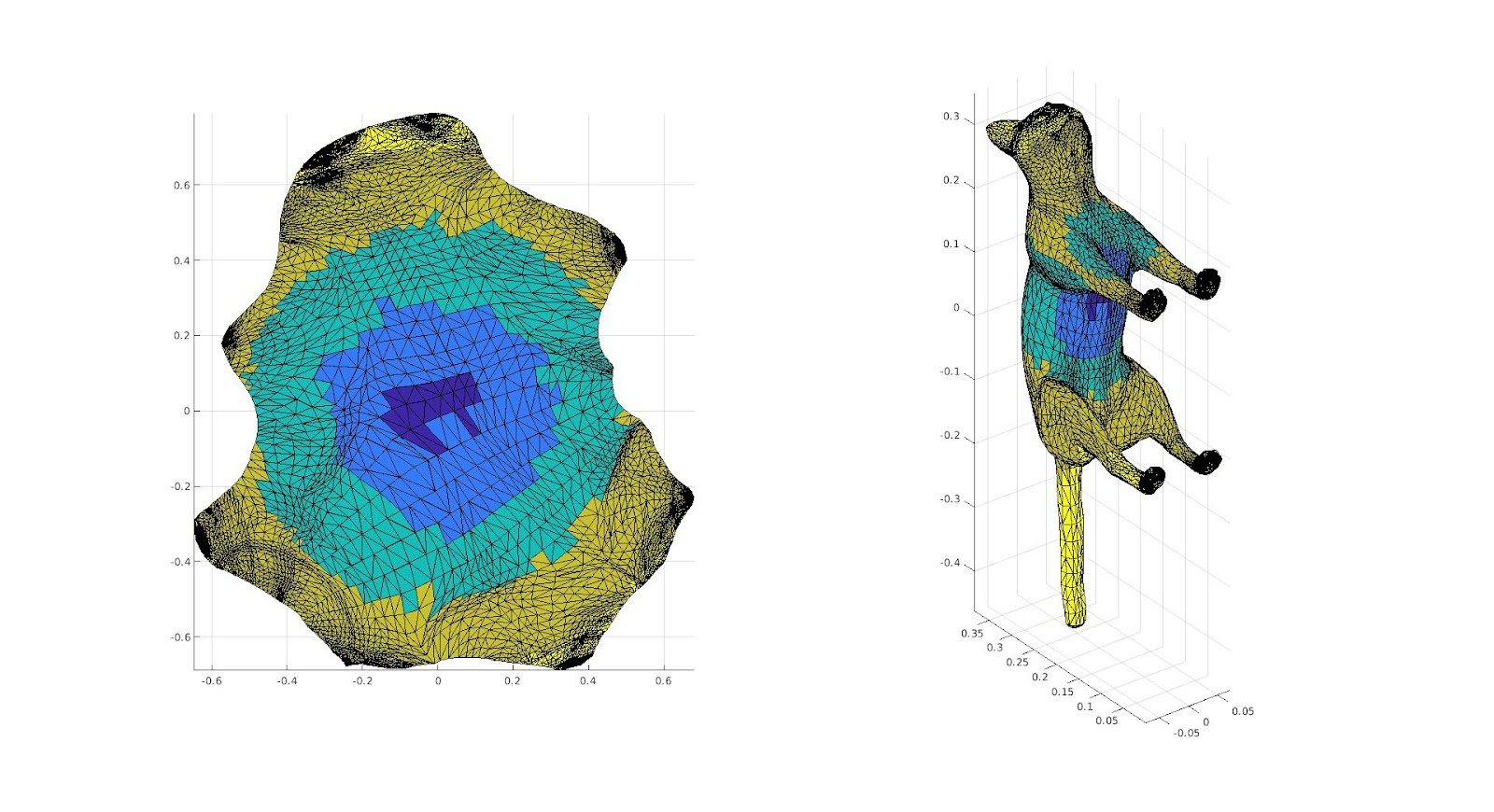

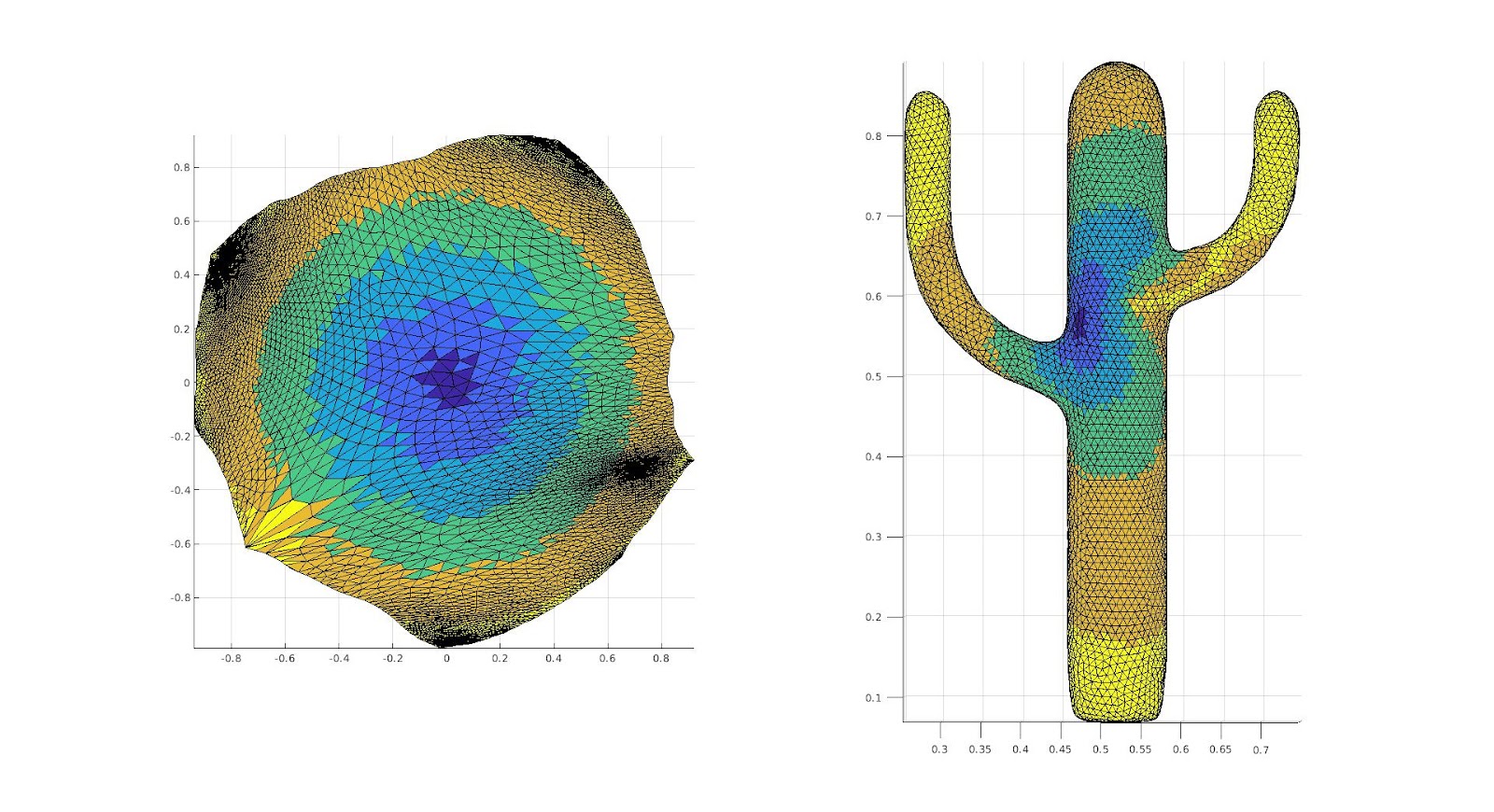

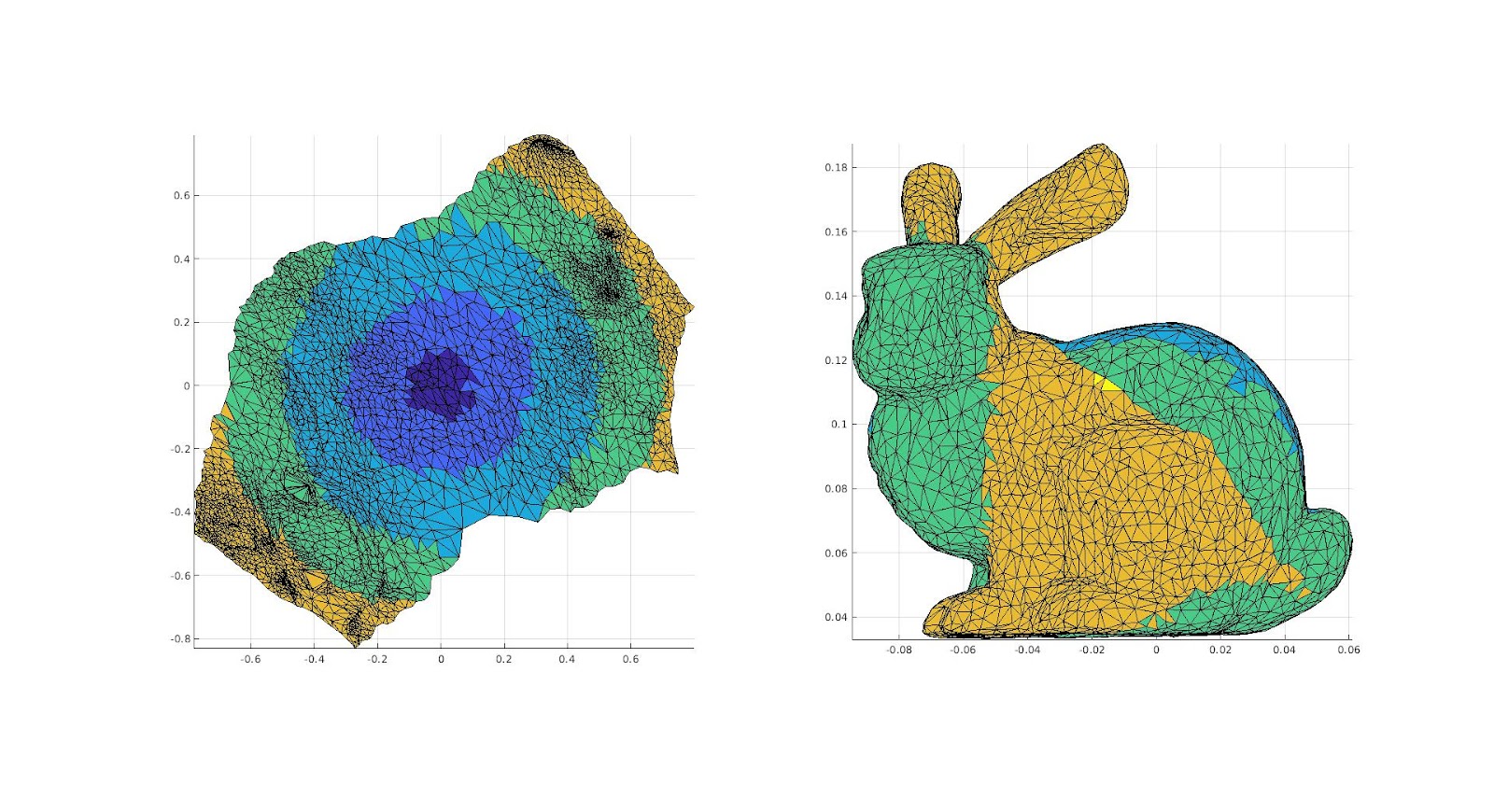

The bottom left area that shows the face.The right middle area showing the back legs and tail.

How Multiple Cuts work:

Thus far we have only discussed and shown single cuts along simple paths. It is also possible, and often preferred, to make multiple cuts on intersecting paths. Making these cuts sequentially, each new cut is equivalent to making a cut on a shape that already has a boundary. If the cut path has one endpoint on the boundary and the rest of the points on the interior, then the resulting boundary is still a simple closed path, as is necessary for our 2D parameterization. The method is the same as before, except the endpoint on the existing boundary is duplicated in addition to the other points. Using multiple cuts increases the freedom of our cut paths and allows us to cut along branching pieces of a mesh.

We can extend our previous Euclidean maximum cut method to multiple cuts in an iterative process. After making our first cut as usual, we repeat the same method but restricting one of the endpoints to be on the previous cuts. Our second cut selects the point that is farthest from our new boundary and chooses the shortest path between them. This is repeated until there are the desired number of cuts. Below are some examples of multiple cuts using this method. One possible automated method of stopping would be to calculate the standard deviation of the distance from the boundary and continue to create cuts until it is below some threshold.

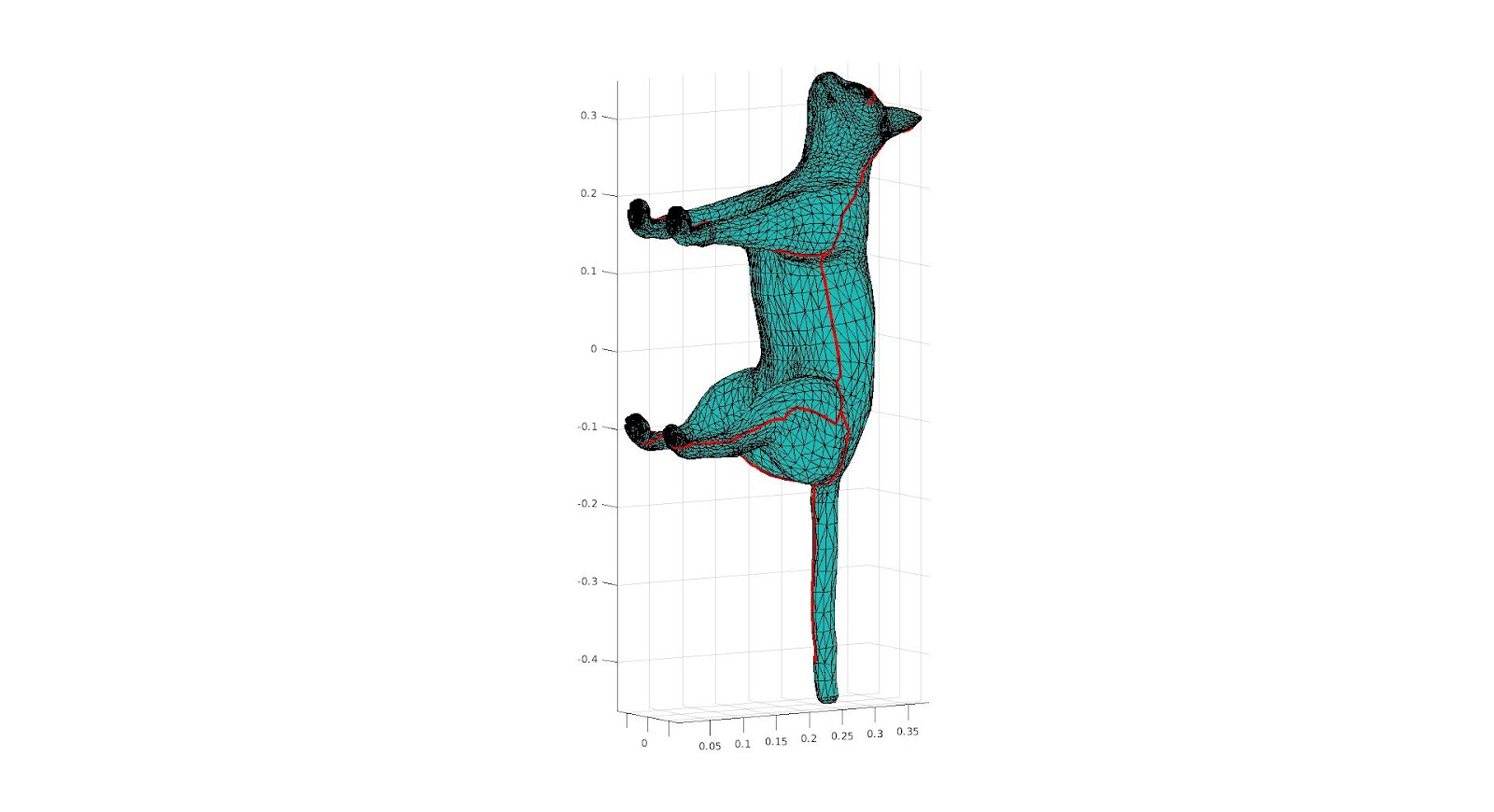

The surface, and the cuts we are making upon it.The 2D Parameterization and a color function that we take from 2D parameterization to the surface.
The surface, and the cuts we are making upon it.The 2D Parameterization a color function that we take from 2D parameterization to the surface.
The surface, and the cuts we are making upon it.The 2D Parameterization a color function that we take from 2D parameterization to the surface.
[example of cutting through diagonals and where we don’t want, downside of this method]

We can also use the sphere approximation to make multiple cuts. The spheres’ centers indicate important spots in the mesh, like joints and protrusions. We decided to use a minimum spanning tree to determine a sequence of cuts that connects each of these areas. First we project each sphere center to a vertex on the mesh. Then we make a weighted graph out of these points where an edge between two points is weighted as their geodesic distance. This graph gives a minimum spanning tree that can be broken into a sequence of cut paths that connects each point from our sphere approximation. The paths sometimes require simple adjustments to remove overlap, and then they are ready for our cutting algorithm.

The surface, and the cuts we are making upon it.The 2D Parameterization a color function that we take from 2D parameterization to the surface.
The surface, and the cuts we are making upon it.The 2D Parameterization a color function that we take from 2D parameterization to the surface.
The surface, and the cuts we are making upon it.The 2D Parameterization a color function that we take from 2D parameterization to the surface.

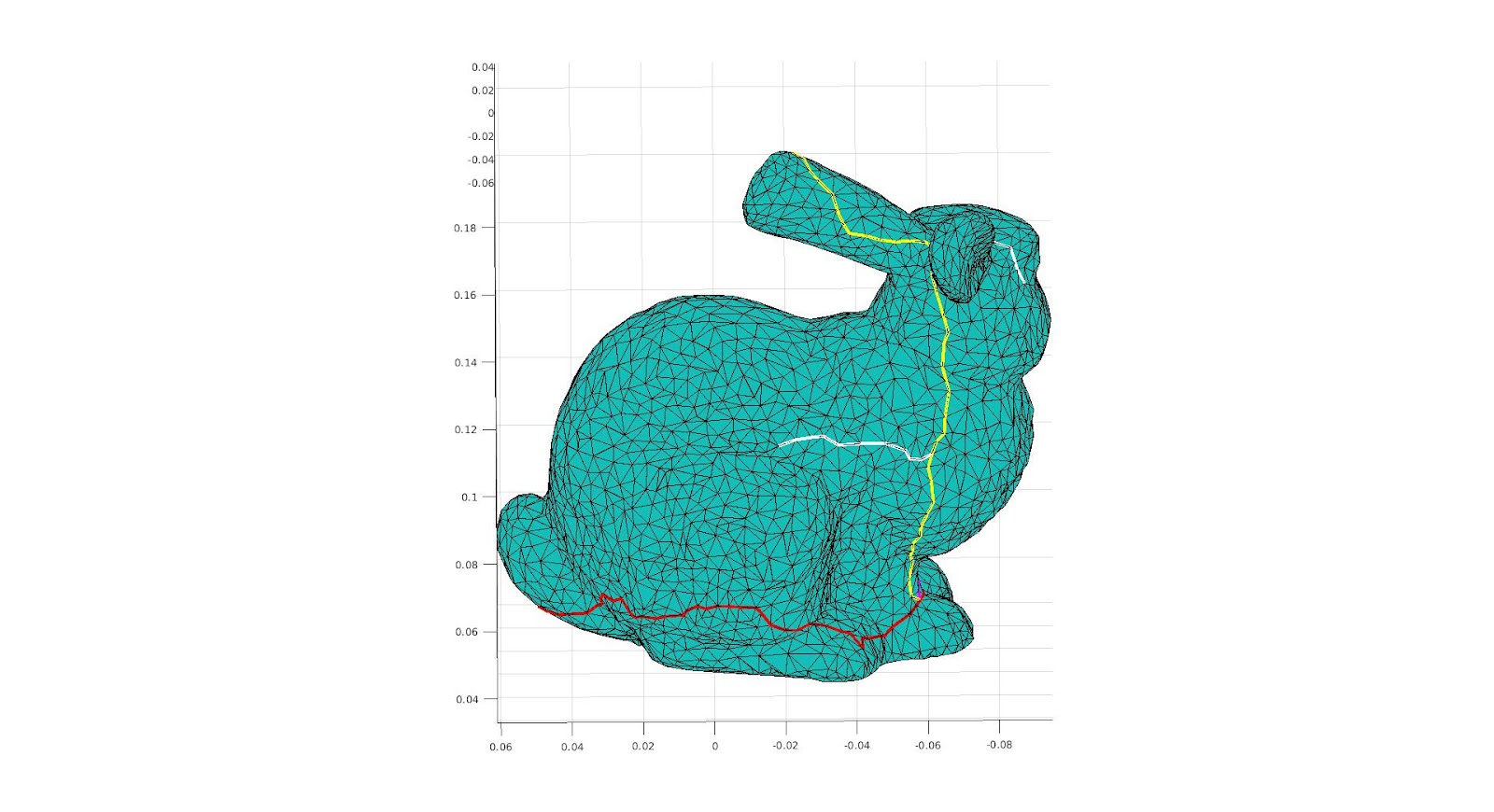

The surface from the front, and the cut we are making upon it.The surface from the back, and the cuts we are making upon it.The 2D Parameterization a color function that we take from 2D parameterization to the surface.


This research was very interesting, but we did not get the sort of success that we would like: While we did get surfaces with minimal distortion, specifically those with multiple cuts, we did not get the desired usage that we would like. Thus it is necessary to state what future direction should be taken if this research would be continued. There are three main areas for future work.

The first is making cuts along lines that preserve symmetry, that is if the surface has symmetry along some axis, or some feature, the 2D parameterization also has these symmetries. This would be useful both for minimizing the distortion and would provide intuitive results for texture mapping. These lines of symmetry, however, would be incredibly difficult to calculate, so we would like for them to be usually user specified, which brings us to the second area: how the inclusion of landmark areas would be useful, that is specifying areas where the cut cannot travel through. This allows us to intuitively avoid areas of high curvature that are important to the surface and how it could be applied to different surfaces as useful for an artistic application.

We could also try to do this in an automated way by using a skeletal approximation of the surface, using either a simplified medial mesh or a method presented in the SGP 2021 Graduate School Course Shape Approximations & Applications: using the sphere mesh proxy simplification of a surface. This method considers the edges between the spheres as the “bones” and makes a cut on each bone section such that it goes over the entirety of the bone, but avoids areas of high curvature by making minimal geodesic cuts along each bone; the method connects the bones by paths the minimize the total geodesic distance. A secondary way to use this is to make cuts along the “bones” but additionally taking a cut perpendicular to the bone at each point where the sphere begins. To think of this on a 3D model of a cat, for example, we would take a cut along the spine, and then take a perpendicular cut along the cat. To see if either of these methods work and if so which is better, further research would be needed.

Math SGI research projects

Understanding Vector Fields More Than In My Calculus 3 Class

AKA: Takeaways from Weeks 1-2 of High-order Directional Field Design Research

Author: Bryce Van Ross

It’s incredible how much one can learn in a month, and I’m looking forward to learning more (especially theoretically). In that same spirit, I highlight some takeaways from research made in my first SGI project. This project was guided by research mentor Dr. Amir Vaxman and TA Klara Mundilova, where I worked with fellow SGI student Jonathan Mousley.

Question(s): Usually we think of vectors and computations like divergence and curl as interrelated, and they are. But can we determine something more nuanced about these properties with respect to some vector field if we encounter a complex (i.e. having multiple vertices/edges) triangular mesh? Yes, we can. But it depends on your choice of approach of partitioning your mesh. For the sake of my research, we focus on the face-based representation.

Face-based representations of vector fields can then be broken down into vertex-based and edge-based approaches, per face per triangle. This means we are working with vector fields on faces that are gradients of (piecewise linear) functions that are either defined on the vertices or on the midpoints of edges. Depending on the choice of approach, then your computations are different. But which way is better and what are the consequences?

Answer(s): This is a natural question. Vertex-based (for certain reasons) seems to yield better approximations, which lead to better attempts at mimicry of continuity. In this sense, vertex-based computations are considered conforming, whereas edge-based computations are deemed nonconforming (w.r.t. continuity). Suppose we wanted to express a given vector field u in terms of familiar computations. Naturally, we would prefer to use vertex-based computations. However, we must remember that degrees of freedom (D.O.F.) must be maintained. Surprisingly, using purely vertex-based computations (or, purely edge-based computations) are in violation of D.O.F. More surprisingly, we find that our only solution is to use a mix of both the conforming and nonconforming terms. So, even though the gradients are distinct, both are equally valuable in terms of a reduction of u. So, there is a need to incorporate both \(G_v\) (the vertex-based gradient) and \(G_e\) (the edge-based gradient). This mixture could be complicated, but isn’t…it only requires the sum of 3 terms. The first term includes \(G_v\) and computes the divergence but is curl-free. For the second term, including \(G_e\), it computes the curl yet is div-free. The last term, referred to as \(h\), is both divergence-free and curl-free. Note: that \(G_v\) and \(G_e\) can be interchanged w.r.t. the first two terms if such equation is multiplied by the rotation matrix \(J\). Ultimately, u (or any vector space) has non-trivial representation (a.k.a. there’s more than meets the eye).

There’s more to it, but the above refers to the Helmholtz-Hodge Decomposition: \[u = G_v\cdot f + J\cdot G_e\cdot g + h.\] A better visualization can be found below (Source: Vector Field Processing on Triangle Meshes), where the h term is not illustrated, in the topmost picture below. In the secondary picture, all components are expressed (Source: Subdivision Directional Fields, Figure 9, Top Row).

Math SGI research projects

Finding the Lower Bounds of the Hausdorff Distance

Author: Bryce Van Ross

Currently, we’re finishing the first half of the 2-week Robust computation of the Hausdorff distance between triangle meshes project. This research is lead by mentor Dr. Leonardo Sacht, TA Erik Amézquita, and in my immediate team, I work with fellow students Deniz Ozbay and Talant Talipov. The below is a brief summary of  what’s happened so far:

A mathematical visualization of the Hausdorff distance of two meshes


Applications: Primarily computer vision, computer graphics, digital fabrication, 3D-printing, and modeling. For example, in computer vision, it is often desirable to identify a best-candidate target relative to some initial template. In reference to the set of points within the template, the Hausdorff distance can be computed for  each potential target. The target with the minimum Hausdorff distance would qualify as being the best fit, ideally being a close approximation to the template object.

Motivation: Objects are geometrically complex. There are different ways to compare objects to each other via a range of geometry processing techniques and geometric properties. Distance is often a common metric of comparison. But what type of distance should we use, which distances are favorable, and why? These are important questions.

Pitfalls of using other types of distance for triangular meshes


For our research, we focus on computing the Hausdorff distance \(h\). “Hausdorff” may seem familiar to you if you know topology. There, a (topological) space is considered Hausdorff if any two elements can be separated into disjoint (open) sets. The key idea here is the separation property with respect to points.

In geometry processing, this idea is extended (in some sense) to the separation of triangle meshes. The Hausdorff distance \(h\) is fundamentally a maximum distance among desirable distances between 2 meshes. These desirable distances are minimum distances of all possible vectors resulting from points taken from the first mesh to the second mesh. But why is \(h\) significant? If \(h\) converges to zero (the smallest possible distance), then this implies that our meshes, and therefore the objects themselves, are very similar. This, like most things in math, implies within some epsilon, representing marginal change such as a slight deformation, rotation, translation, compression, or stretch. If \(h\) is large, then this implies that the two objects are dissimilar. Intuitively, this is due to a lack of ideal correspondence from triangle to triangle. In short, \(h\) serves as a means of computing the similarity between digital objects in terms of maximally separating the meshes’  points according to their minimum distances.

Tasks: To compute \(h\), we find the maximizer, the point (in the first mesh) corresponding to the computation of \(h\). This point is found via an algorithmic process called the branch and bound technique. Sparing the details, the result of applying this technique will provide a (very small) region where the minimizer is claimed to exist, after a series of triangle subdivisions and deletions. There are different ways to implement this technique. Our collective goal this week was to achieve accurate \(h\) given any two meshes. Once this is ensured, Week 2 would focus on making our code more robust (efficient/fast). This work can be simplified into three primary tasks: encoding the lower bound and upper bound of possible values of \(h\), and the subdivision method. My work focused on the lower bound, for which the other two functions are dependent.

Accomplishments: By Day 2, we started with writing pseudocode for the lower bound, using only the vertices of the first mesh and computing their distances with respect to vertices of the second mesh. This was computed per face, and the minimum was found. Although this method was correct, it didn’t account for either the edge or interior cases of a given triangle. Looping through an edge would be immediately doable, but the interior case would be more challenging. Thankfully, Dr. Sacht had us search through gptoolbox for such functionality that would account for all three cases. Once finding this function, we were able to reduce my code to two lines! The irony is although this was valid, the referenced function was basically an empty shell. The function was actually calling a C++ function that would have to compiled and linked against other libraries and due to our time constraints we decided it was best to address this issue in a future time. Ultimately, we ended up having to write from scratch once more. In searching for similar point-triangle distance algorithms, we initially found an approach using normal vectors, which would offer projective power of the former mesh vertices relative to the latter mesh. The computations were erroneous and misrepresentative. Since then, our team has been using a combinatorial plane-vector approach to find the lower bounds per vertex.

Hopefully we’ll finish soon… we’re excited for the next steps!

Demo Math SGI research projects

Incompressible Flows on Meshes

An exploration of computational fluid dynamics

By: Natasha Diederen, Joana Portmann, Lucas Valença

These past two weeks, we have been working with Paul Kry to extend Jos Stam’s work on stable, incompressible fluid flow simulation. Stam’s paper Flows on Surfaces of Arbitrary Topology implements his stable fluid algorithm over patches of Catmull-Clark subdivision surfaces. These surfaces are ideal since they are smooth, can have arbitrary topologies, and have a quad patch parameterisation. However, Catmull-Clark subdivision surfaces are a quite specific class of surface, so we wanted to explore whether a similar algorithm could be implemented on triangle meshes to avoid the subdivision requirement.

Understanding basics of fluid simulation algorithms

We spent the first week of our project coming to terms with the different components of fluid flow simulation, which is based on solving the incompressible Navier-Stokes equation for velocities (1) and a similar advection-diffusion equation for densities (2) \[ \frac{\partial \mathbf{u}}{\partial t} = \mathbf{P} { -(\mathbf{u} \cdot \nabla)\mathbf{u} + \nu \nabla^2 \mathbf{u} + \mathbf{f} }, \quad (1)\] \[\frac{\partial \rho}{\partial t} = -(\mathbf{u} \cdot \nabla)\rho + \kappa \nabla^2 \rho + S, \quad (2)\] where \( \mathbf{u}\) is the velocity vector, \(t\) is time, \(\mathbf{P}\) is the projection operator, \( \nu\) is the viscosity coefficient, \(\mathbf{f}\) are external sources, \( \rho\) is the density scalar, \( \kappa\) is the diffusion coefficient, and \( S \) are the external sources. In the above equations, the Laplacian (often denoted \( \Delta\)) is written as \( \nabla^2\), as is usually done in works from the fluids community.

In his paper, Stam uses a splitting technique to deal with each term on its own. The algorithm carries out the following steps twice: first for the velocities and then for the densities (with no “project” step required for the latter). \[ \mathbf{u_0} {\underset{\overbrace{\text{add force}}^\text{ }}{\Rightarrow}} \mathbf{u_1} {\underset{\overbrace{\text{diffuse}}^\text{ }}{\Rightarrow}} \mathbf{u_2} {\underset{\overbrace{\text{advect}}^\text{ }}{\Rightarrow}} \mathbf{u_3} {\underset{\overbrace{\text{project}}^\text{ }}{\Rightarrow}} \mathbf{u_4} \]

Source: Flows on Surfaces of Arbitrary Topology

We start by adding any forces or sources we require. In the vector case, we can add acceleration forces such as gravity (which changes the velocities) or directly add velocity sources with a fixed location, direction, and intensity. In the scalar case, we add density sources that directly affect other quantities.

Single density source pouring down with gravity over an initially zero velocity field

Densities and velocities are moved from a high to low concentration in the diffusion step, then moved along the vector field in the advection step. The final projection step ensures incompressible flow (i.e., that mass is conserved), using a Helmholtz-Hodge decomposition to force a divergence-free vector field. We will not go into much more detail on Stam’s original Stable Fluids solver. Dan Piponi’s Papers We Love presentation gives a very comprehensive introduction for those interested in learning more.

To better understand the square grid fluids solver, we implemented a MATLAB version of the C algorithm described in Stam’s paper Real-Time Fluid Dynamics for Games. In terms of implementation, since we were coding in MATLAB, we did not use the Gauss-Seidel algorithm (like Stam did) to solve the minimisation problems. Instead, we solved our own quadratic formulations directly. Although some of our methods differed from the original, the overall structure of the code remained the same.

Full simulation results over a square grid can be seen below.

Generalising to triangle meshes

After a week, we understood the stable fluid algorithm well enough to extend it to triangle meshes. Stam’s paper for triangle meshes adapted the algorithm above from square grids to patches of a Catmull-Clark subdivided mesh, with the simulation boundary conditions at the edges of the parametric surfaces. We, on the other hand, wanted a method that would work over any triangular mesh, as long as such mesh, as a whole, is manifold without boundary. Moreover, we wished to do so by working directly with the triangles in the mesh without relying on subdivision surfaces for parameterisation. The main difference between our method and Stam’s was the need to deal with the varying angles between adjacent faces and their effect on advection, diffusion, and overall interpolation. In addition, since we’re working with manifolds without boundaries, we did not need to deal with boundary conditions (like in our 2D implementation). Furthermore, we had to choose between storing both vector and scalar quantities at the barycentre of each face or at each vertex. For simplicity, we chose the former.

What follows is a detailed explanation of how we implemented the three main steps of the fluid system: diffusion, advection and projection.


To diffuse quantities, we solved the equation\[ \dot{\mathbf{u}} = \nu \nabla^2 \mathbf{u},\] which can be discretised using the backwards Euler method for stability as follows \[ (\mathbf{I}-\Delta t \nu \nabla^2)\mathbf{u_2} = \mathbf{u_1}.\] Here, \( \mathbf{I} \) is the identity matrix and \( \mathbf{u_1}, \ \mathbf{u_2} \) are the respective original and final quantities for that iteration step, and can be either densities or vectors.

Surprisingly, this was far easier to solve for a triangle mesh than a grid due to the lack of boundary constraints. However, we needed to create our own Laplacian operators. They were used to deal with the transfer of density and velocity information from the barycentre of the current triangle to its three adjacent triangles. The first Laplacian we created was a linear operator that worked on vectors. For each face, before combining that face’s and its neighbours’ vectors with Laplacian weighting, it locally rotated the vectors lying on each of the face’s neighbouring faces. This way, the adjacent faces lay on the same plane as the central one. The rotated vectors were further weighted according to edge length (instead of area weighting) since we thought this would best represent flux across the boundary. The other Laplacian was a similar operator, but it worked on scalars instead of vectors. Thus, it involved weighting but not rotating the values at the barycentres (since they were scalars).

Diffusion of scalars over a flattened icosahedron

Advection was the most involved part of our code. To ensure the system’s stability, we implemented a linear backtrace method akin to the one in Stam’s Stable Fluids paper. Our approach considered densities and velocities as quantities currently stored at barycentres. It first looked at the current velocity at a chosen face then walked along the geodesic in the opposite direction (i.e., back in time). This allowed us to work out which location on the mesh we started at so that we would arrive at the current face one time-step later. This is analogous to Stam’s 2D walking over a square grid, interpolating quantities at the grid centres, but with a caveat. To walk the geodesics, we first had to use barycentric coordinates to work out the intersections with edges. Each time we crossed an edge, we rotated the walk direction vector from the current face to the next, making it as if we were walking along a plane. At the end of the geodesic, we obtain the previous position for the quantity on our current position. We then carried out a linear interpolation using barycentric coordinates and pre-interpolated vertex data. The result determined the previous value for the quantity in question. This quantity was then transported back to the current position. Vector quantities were also projected back onto the face plane at the end to account for any numerical inaccuracies that may have occurred.

Advection of a density blob over an icosahedron following gravity

Our advection code initially involved walking a geodesic for each mesh face, which is not computationally efficient in MATLAB. Thus, it accounted for the majority of the runtime of our code. The function was then mexed to C++, and the application now runs in real-time for moderately-sized meshes.


So far, we have not guaranteed that diffusion and advection will result in incompressible flow. That is, the amount of fluid flowing into a point is the same as the amount of fluid flowing out. Hence, we need some way of creating such a field. According to the Helmholtz-Hodge decomposition, any vector field can be decomposed into curl-free and divergence-free fields, \[ \mathbf{w} = \mathbf{u} + \nabla q, \] where \( \mathbf{w}\) is the velocity field, \( \mathbf{u} \) is the divergence-free component, and \( \nabla q\) is the curl-free component.

A solution (for \(q\)) is implicitly found by solving a Poisson equation of the form \[ \nabla \cdot \mathbf{w} = \nabla^2 q\] where we used the cotangent Laplacian in gptoolbox for \(\nabla^2 q\). Subtracting the solution from the original vector field gives us the projection operator \( \mathbf{P}\) to find the divergence free component \( \mathbf{u} \) \[\mathbf{u} = \mathbf{Pw}=\mathbf{w}-\nabla q. \]

A uniform vector field before (left) and after (right) projection

This method works really nicely for our choice of having vector quantities stored at the faces. The pressures we get will be at the vertices. The gradients of those pressures are naturally computed at faces to alter the velocities to give an incompressible field. The only challenge is that the Laplacian is not full rank, so we need to regularise it by a small amount.

Future work

We would like to implement an alternative advection method, possibly more complicated. This method would involve interpolating vertex data and walking along mesh edges, rather than storing all our data in faces and walking geodesics crossing edges. This could possibly avoid extra blurring, which might be introduced by our current implementation. This occurs because we must first interpolate the data at the neighbouring barycenters to the vertices. This data is then used to do a second interpolation back to the barycentric coordinate the geodesic ends at.

For diffusion, although our method worked, there were a few things that could be improved upon. Mainly, diffusion did not look isotropic in cases with very thin triangles, which could be improved by an alternative to our current weighting of the Laplacian operator. Alternatively, we could use a more standard Laplacian operator if we stored quantities at the vertices instead of barycenters. This would result in more uniform diffusion at the expense of a more complicated advection algorithm.

Example of non-isotropic diffusion over a flattened torus


Final results

We would like to give a thousand thanks to Paul Kry for his mentorship. As a first foray into fluid simulations, this started as a very daunting project for us. Still, Paul smoothly led us through it by having dozens of very patient hours of Zoom calls, where we learned a lot about maths and coding (and biking in the rain). His enthusiasm for this project was infectious and is what enabled us to get everything working in such a short period. Still, even though we managed to get a good start on extending Stam’s methods to more general triangle meshes, there is a lot more work to do. Further extensions would focus on the robustness and speed of our algorithms, separation of face and vertex data, and incorporation of more components such as heat data or rotation forces. If anyone would like to view our work and play around with the simulations, here is the link to our GitHub repository. If anybody has any interesting suggestions about other possibilities to move forward, please feel free to reach out to us! 😉

Math SGI research projects

2D Shape Complexity

Kirby Dietz, Bonnie Magland, & Marcus Vidaurri


What does it mean for a shape to be complex? We can imagine two shapes and decide which seems to be more complex, but is our perception based on concrete measures? The goal of this project is to develop a rigorous and comprehensive mathematical foundation for shape complexity. Our mentor Kathryn Leonard has conducted previous work on this topic, categorizing and analyzing different complexity measures. The categories include Skeleton Features, Moment Features, Coverage Features, Boundary Features, and Global Features. This week we focused primarily on two complexity measures from the Boundary Features. We tested these measures on an established database of shapes as well as producing some shapes of our own to see which aspects of complexity they measure and if they match our intuition.



The first measure of complexity we considered was related to the boundary of the figure. To understand the measure, we first need to understand down-sampling. This is the process of lowering the number of vertices used to create the shape, and using a linear approximation to re-create the boundary. A total of five iterations were performed for each figure, typically leading to a largely convex shape.

Downsampled image with 500, 100, 50, 25, and 8 vertices.

The measure we considered was the ratio between the length of the downsampled boundary and that of the original boundary. In theory, downsampling would significantly change the boundary length of a complex shape. Thus, ratio values close to 0 are considered complex and values close to 1 are considered simple (that is, the downsampled length closely matches the original).

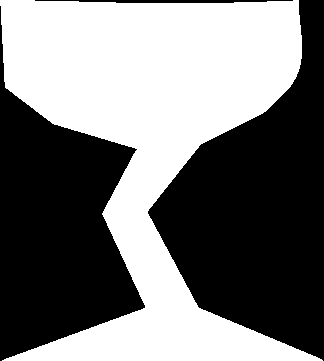

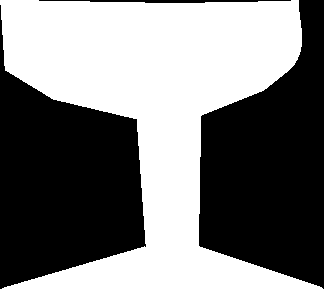

The boundary measure was tested on images which had been hand-edited to create a clear progression of complexity.

For example, the boundary measure created a ranking that nearly matched our intuition, besides switching the regular octopus and the octopus with skinny legs. For all other hand-edited progressions, the boundary measure exactly matched our intuition.

See Appendix 3 in the attached spreadsheet for the full boundary data.


The second measure of complexity we considered was curvature. We calculate a normalized, ten bin histogram of the distribution of curvature values at each point of the shape boundary for a given shape and rank the complexity based on the value of the first bin, which was shown in user studies to be highly correlated with user rankings. Higher numbers generated from this measure indicate greater complexity.

One thing this measure emphasizes is sharp corners. At these points the curvature is very high, having a large impact on the overall value.

Adding sharp bends increases complexity as measured by curvature

User Ranking

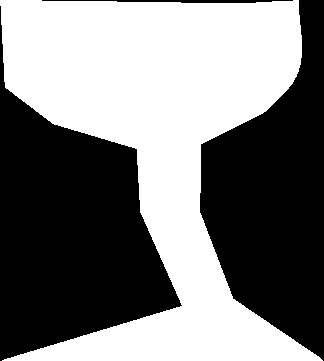

To see how these measurements compared to our conception of complexity, we looked at previously created images and ranked them as a group according to our notion of complexity. One such subset of images was a group of eight unrelated figures, shown below.

We then used the two measures to create an automated ranking.

#Ranked by UserRanked by Boundary LengthBoundary Length ValuesRanked by CurvatureCurvature Values

The octopus had the lowest boundary length value, and thus the highest complexity ranking according to this measure. Much of the original figure’s perimeter is contained in the tentacles, which are smoothed out during the downsampling. This leads to a large difference in boundary lengths, meaning a more complex ranking.

As previously mentioned, the curvature measure emphasizes sharp corners. This is why the curvature measure ranks the stingray and flower higher than the boundary measure does.

To evaluate how well the resulting ranking matched with our own ordering, we used three similarity measures shown below.

MeasureSimilarity ValueAvg. DistanceNormalized Dist
Boundary Length0.37501.000.12500

The first measure we used to compare the user and automated rankings was the ratio of the number of images with matching rank to the total number of images. We called this ratio the similarity value. For example, the user rankings and curvature rankings both placed ‘lizzard-9’ at #1 and ‘Glas-9’ at #6. Thus, the similarity value for the curvature measure was 2/8, or 0.25.

The second similarity measure we used was the average distance, the ratio of the sum of the differences in rank number for each image to the total number of images. This was included to consider how much the ranking of each image differed.

The third similarity measure was the normalized distance, the ratio of the average distance to the total number of images. This was included to account for differences in sample sizes.

The rankings of the group of eight images did differ from our ordering, but on average each shape was off by less than one rank.

Camel & Cattle

Now that we better understand each measurement, we tested them on a database of thirty-eight images of camels and cattle. As in the first example, we ranked the images in order of perceived complexity, and then generated an ordering from the boundary length and curvature measures.

MeasureSimilarity ValueAvg. DistanceNormalized Dist
Boundary Length010.315780.27146

This ranking was less accurate, but still had a clear similarity. We did see however similar groups of values in the boundary length, and ties within the curvature and to deal with this we ran k-mediods clustering on these bins of measures individually.

See Appendix 1 for the full data on the Camel-Cattle Rankings

K-mediods clustering is an algorithm that puts into groups or clusters pieces of data, in an attempt to minimize the distance (in this case Euclidean distance) between the points within each cluster to minimize the total of Euclidean distances summed over the distance within each cluster. For the curvature measure we got the following clusters. (Note that the boundary length and curvature measures ignore any ‘noise’ within the boundary of the image. Thus, the spots on the cows were not considered.)

This showing what the curvature measure considers the most similar shapes, and for the boundary length measure getting the following clusters:

In order to see how well the two measures did in combination, we used both quantities in a clustering algorithm to produce groupings of similar images. The resulting clusters grouped simple shapes with simple shapes, and more complex shapes with more complex shapes.

See Appendix 2 in the attached spreadsheet for the full clusters as well as their distances on the Camel-Cattle.


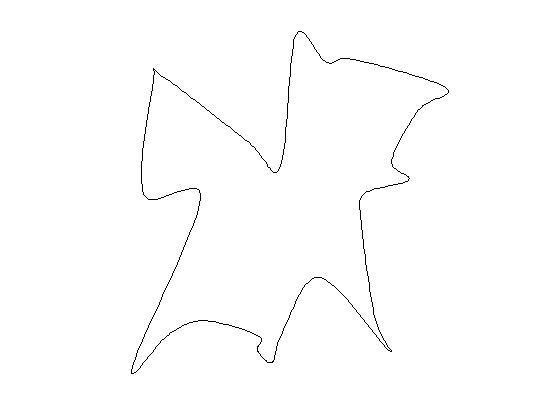

To test our measures on a clear progression of complexity, we decided to make our own shapes. Using a Catmull-Rom interpolation of a set of random points (thanks day 3 of tutorial week!), we produced a large data set of smooth shapes. Generally, intuition says that the more points used in the interpolation, the more complex the resulting shape. Our measures both reflected that pattern.

N = 5N = 10N = 15N = 25
C: 0.022044
B: 1.0044
C: 0.034068
B: 0.98265
C: 0.066132
B: 0.93492
C: 0.08016
B: 0.91145

See Appendix 4 in the attached spreadsheet for the full ranking data of the measures on the Polylines.

We calculated these measures on our database of over 150 shapes, each generated from five, ten, fifteen, or twenty-five points. Using these results, a clustering algorithm was able to roughly distinguish between these four groups. It groups 98.0% of the fives together, 78.7% of tens, 62.5% of fifteens, and 85.2% of twenty-fives. We also note that both complexity measures identify these shapes as much simpler than the other shapes in our database, even with the higher point orders. This is likely because of how smooth the lines are. This reveals an opportunity for future improvement in these measures, since intuition would rank a simple shape from the database (like the horseshoe) as simpler than the figure in the N = 25 column above.

See Appendix 5 in the attached spreadsheet for the clustering data of the polylines.

Noisy Circles

In order to test the measures on a clear progression of complexity that progressed the noise of the shape (small protrusions) rather than large protrusions or changes like in the Polylines we created we created a shape making program that started with a circle, something that both our intuition ad the constructive model of complexity put forth as the simplest shape. We then added noise to the circle by running a pseudo-random walk on each point on the boundary of the circle where we added a point for each step of the walk. The walk went in a random cardinal direction, a random number of steps for each point on the boundary, we then theorized that we would be able to add levels of complexity on average by increasing the number of propagations, eg: the number of times that the circle underwent every point taking a random walk. This has the additional benefit that like the polylines allows us to measure complexity on average levels which would give us a better comparison to see if our measures are reasonable.

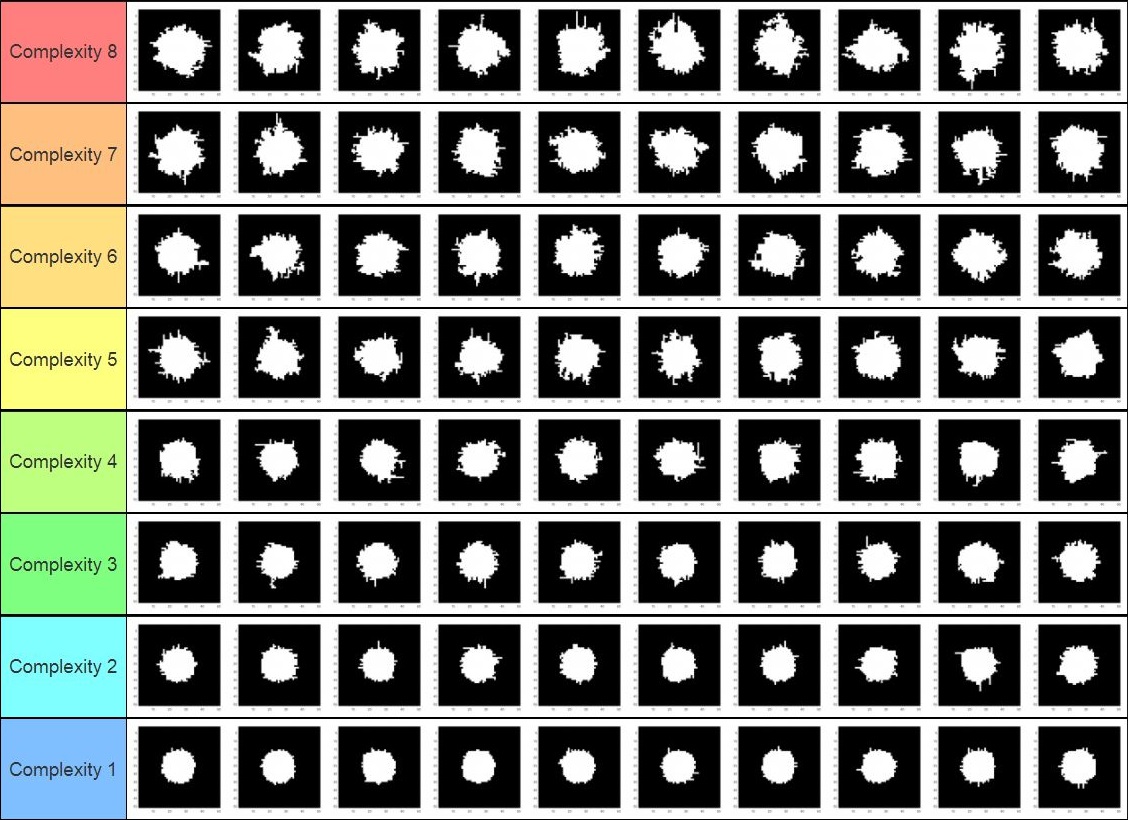

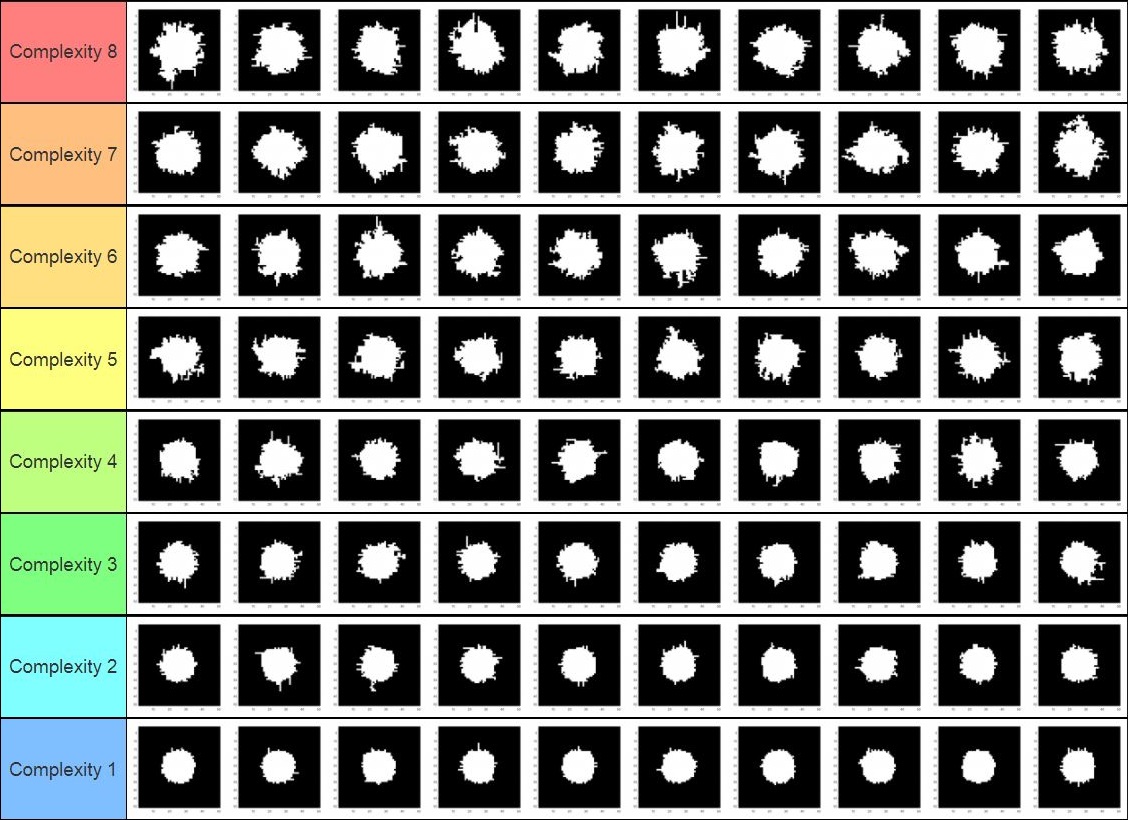

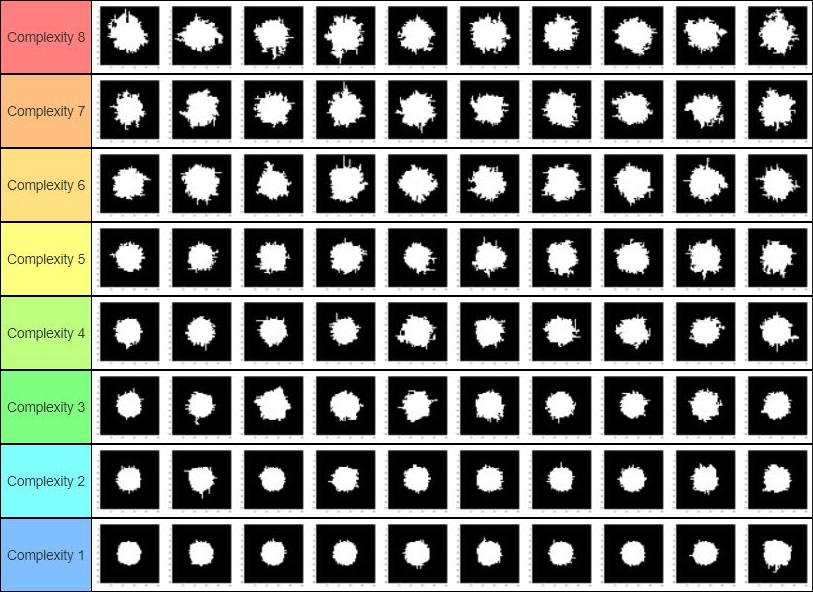

To test this we ran eight levels of complexity with ten shapes per level.  The shapes as well as what propagation, and thus complexity level each one is is shown in the first figure.

In order to give a partial test to see if our hypothesis that generally the more propagations are run the more complex the shape is we tested it against our human intuition of complexity, and ranked the shapes according to how complex they seemed to human intuition.

Comparing the two we get the following table:

Similarity PercentageDistance

At first glance looking at the similarity percentage, that is how many of the shapes are placed by human intuition into the same complexity level as the number of perturbations, and we see that only 59% of the shapes are placed into the same level, however, looking at the distance tells us a different story. We see from the small distance value, that our similarity percentage is lower than we would like because swaps between one level and another are rather common which means that the general relation of propagations to complexity is what we desire, thus comparing distance to the original seems to be a promising measure of how accurate the propagations to complexity are. As this distance function implies that on average the complexities are in the correct level and are only moved half a level from the number of propagations done. Thus as our general hypothesis is true that the number of propagations correlates to the complexity we can look at the automatic measure of propagations rather than user intuition for comparing this data to the curvature and boundary measures.

Now that we have seen this let us look at how the curvature measure ranks the shapes. In the bottom left figure:

Similarity PercentageDistance

We see from the similarity, that it is less similar to the propagations, than the intuition and thus is less accurate to our intuition than the number of propagations are, however it again does not have a large distance, in fact when taking into account the distance between the the intuition and the propagation we get that the distance range between intuition and the curvature measure ranking is in the range of 0.8375-1.6875, which is not too large of a change, and shows that the curvature measure is a reasonable measure insofar that it gives us the correlation that we are looking for generally, however as we can see looking at the ranking itself in the figure it is not entirely accurate.

See Appendix 6 in the attached spreadsheet for the full ranking data for the not-circles.

We now look at the other main measure that we use the boundary length measure to see the ranking that it produces. In the bottom right figure:

Similarity PercentageDistance

From this data we see that in comparison to the curvature we have both a higher similarity and a lower distance. From the low distance we see that in general only small shifts between what levels things should be placed upon occur, confirmed by the difference between the boundary length measure and our intuition being in the range of 0.4375-1.2875, this shows that for looking of noise of this nature that the boundary length measure is better than the curvature measure as it keeps the general relationship and does so with much less error, thus showing a strong reason to use the boundary length measure as a way to classify the complexity of shapes differing in the amount of noise that they have.

See Appendix 6 in the attached spreadsheet for the full ranking data.

Lastly, to see whether or not these levels are somewhat arbitrary and whether there is an even gap between levels, we use k-medoids clustering on eight clusters to see how it is clustered using both the boundary length and curvature measures together. From this we get extremely interesting results, in that they say “No! There are not even gaps” we see this from the range in sizes of the clusters that occur ranging from 1 to 27, thus we see that the propagations do not create even clusters but rather bursts of complexity. This is however to be expected, the levels are simply the number of propagations that occur and we forced the earlier rankings into using the same number on each level, and thus this does not defeat that on average each level has more complexity, we also need to consider that there are some differences due to using these measures for clustering from how human intuition would cluster them. We now from seeing the lowest number of clusters have a strange result, one of the clusters has only one element in it, , and while this presents an initial puzzle after analysis it shows to have a good reason the circle like element by itself is almost a perfect (pixel) circle, thus it is placed by itself as its own level of a “zero” complexity. That many levels of propagations exist within one cluster is also similarly explained to clusters of different sizes, that is when we looked at our previous data small changes in distance were common and thus in clustering instead of small distances, where small shifts occur we instead have them in the same group.

See Appendix 7 in the attached spreadsheet for the full clusters as well as distances of the noisy circles.

Putting it all Together

Lastly we clustered everything in order to get a sense of the various complexities and how our measures would group all of the different main categories of shapes that we looked at, those being the camel-cattle, the polylines and the not circles. We put them into eight clusters in order to attempt to put them into the same category levels of complexity as were arbitrarily created by the not shape propagations. From this we got somewhat unexpected results, those being that while the camel-cattle were grouped together with the not circles, as well as with how their complexities would expect them to be grouped based on earlier clusterings, the polylines were in clusters by themselves. We then have to expand upon this clustering in order to try to explain it. The clusters of camel-cattle as well as not circles were four of the eight clusters, inside of these clusters we had on average the higher number of propagation on  not circles grouped together with the camel-cattle that were given higher ranked complexity values, and vise-versa with lower propagation and lower ranked complexity. The other four clusters were the polyline data, and the reason for this is that as we can see the polylines are given by the curvature ad boundary length measures to have much less complexity and as such are in a group, well groups of their own having much less complexity than the camel-cattle as well as the not circles, and thus by our measures they are clustered separately. This is interesting especially as one of our not circles is almost just a perfect (pixel) circle, we then want to somewhat explain why this is more complex than the polylines, and the answer that we see for this is that the polylines are much smoother, while the pixel circle is still made out of these large pixels and thus is much sharper, it is thus left as a somewhat open question if this would be true for larger starting not circles.

See Appendix 8 in the attached spreadsheet for the full clusters as well as the distances of all the shapes.


From our tests and calculations, we conclude that our intuition of shape complexity is measurable, at least according to some respects, we saw that curvature was a good measure of how many sharp edges a shape has, and length was a measure of the noise and somewhat of the protrusions on a shape. The specific measurements of boundary length and curvature both give good estimations of complexity, giving the general relation between our intuitive understanding, while measuring in general different properties of shapes. However, we only did this research for one week and thus it feels necessary to say what would be done to continue on this research, the ways that we would continue the research is in three main facets. Firstly we would like to use more measures other than just the boundary length and curvature measures, in order to both see if there are other more effective general measures of complexity and in order for us to see if other measures are better able in particular at looking at different areas of complexity. From looking at more measures we can also increase what we consider in our k-medoids. The second thing that we would do is to compare and rank more of the shapes based on the intuition of more people, because of the subjective nature of doing this intuitive ranking. This would allow us to better with more data on subjective ranking see how accurate our complexity measurements are. On this same subject the third area we would do more research on would be to increase the number of shapes that we are looking at specifically the number of not circles, and polylines as they are randomly generated and thus only on average increase in complexity and thus with the more shapes we have of them the clearer we would see the differences in complexity between the number of points and the propagations.


We would like to express great appreciation for our mentor Kathryn Leonard, who generously devoted time and guidance during this project. We would also like to thank our TA Dena Bazazian, who provided feedback and encouragement throughout the week.

Math SGI research projects

Embedding Hierarchical Data in Hyperbolic Geometry

By: Zeltzyn Montes and Sneha Sambandam

Many of the datasets we would like to perform machine learning on have an intrinsic hierarchical structure. This includes social networks, taxonomies, NLP sentence structure, and anything that can be represented as a tree. While the most common machine learning tools work in the Euclidean space, this space is not optimal for representing hierarchical data.

When representing hierarchical data in the 2D space, we have two main objectives: to preserve the hierarchical relationships between parent and child nodes; and to ensure distances between nodes are somewhat proportional to the number of links in between. However, when representing this structure in the 2D Euclidean space, we run into a few limitations.

Fig 1. A tree with branching factor of 2 drawn in the Euclidean space. (Courtesy of Alison Pouplin)

For example, let’s first draw a tree, with a branching factor of 2 (Fig 1). When our tree is very deep, placing nodes equidistantly causes us to run out of space rather quickly, like in our example above at only a depth of 5. The second problem we run into is with untrue distance relationships among nodes. To help visualize this phenomenon, refer to Fig 2a. Here, arc refers to the shortest path between two nodes.

In theory, since the length of the arc between the purple nodes is less than that of the blue nodes, the purple nodes should result in the smaller distance. However, the Euclidean distance between the purple nodes is larger than the distance between the blue nodes. With the Euclidean 2D space, we observe that siblings in later generations end up closer and closer together, rendering Euclidean distance almost meaningless, as it only grows linearly with depth. Instead, we need a better distance measure: one that somehow travels “up” a tree before going back down as shown in Fig 2b and that is analogous to tree distance that grows exponentially as shown in Fig 3

Fig 3. Desired measurement of distances between nodes. (Courtesy of Alison Pouplin)

A solution for this is to add an extra dimension (Fig 4). Now, the tree follows a smooth manifold: a hyperboloid. A hyperboloid is a manifold with a negative sectional curvature in the Minkowski space, drawn by rotating a parabola around its symmetrical axis. Note, the Minkowski space is similar to the Euclidean space except dimension 1 is treated differently, while other dimensions are treated similarly to the Euclidean space.

Fig 4. Adding a fourth dimension to hierarchical data. (Courtesy of Alison Pouplin)

Embedding the tree on a smooth manifold now allows us to compute geodesics (shortest distance between two points on a surface). We can also project the data onto a lower dimensional manifold, such as the Poincaré disk model. This model can be derived using a stereoscopic projection of the hyperboloid model onto the unit circle of the z = 0 plane (Fig 5).

Fig 5. Projecting hyperbolic geodesic to Poincaré disk. (Courtesy of Alison Pouplin)

The basic idea of this stereoscopic projection is:

  1. Start with a point P on the hyperboloid we wish to map.
  2. Extend P out to a focal point N = (0,0,−1) to form a line.
  3. Project that line onto the z = 0 plane to find our point Q in the Poincaré model.

The Poincaré disk model is governed by the Möbius gyrovector space in the same way that Euclidean geometry is governed by the common vector space (i.e., we have different rules, properties and metrics that govern this space). While we won’t go into the specifics of what constitutes a gyrovector space, we shall detail the properties of the Poincaré disk that make it advantageous for representing hierarchical data.

Fig 6. A tree with branching factor of 2 drawn on the Poincaré disk. (Source)

In Fig 6, we can see a hierarchical tree with branching factor two embedding into a Poincaré disk. Distances between all points are actually equal because distances grow exponentially as you move toward the edge of the disk.

Some notable points of this model are the following:

  • The arcs never reach the circumference of the circle. This is analogous to the geodesic on the hyperboloid extending out to infinity, that is, as the arc approaches the circumference it’s approaching the “infinity” of the plane.
  • This means distances at the edge of the circle grow exponentially as you move toward the edge of the circle (compared to their Euclidean distances).
  • Each arc approaches the circumference at a 90 degree angle, this just works out as a result of the math of the hyperboloid and the projection. The straight line in this case is a point that passes through the “bottom” of the hyperboloid at (0,0,1).

With these properties we are able to represent data in a compact, visually pleasing and apt form using hyperbolic geometry. Current research explores how we can harness these properties in order to perform effective machine learning on hierarchical data.


2D Shape Representation

Silvia Sellán’s talks on Day 3 of SGI gave a large-scale overview of shape representation, which I really appreciated as a Geometry Processing newbie.

First, what is Shape Representation? To describe Geometry Processing, Silvia quoted Alec Jacobson: “Geometry Processing is a subfield of biology.” Just as biological organisms have a life cycle of birth–growth–death, so do shapes: they are born (created in a computer program), then they are manipulated and changed through various algorithms, and then they die–or rather, they leave the computer and go into the world as a finished product, such as a rendered image in a video game. Shape Representation encompasses the methods by which a shape can be created.

Silvia gave us an introduction to Shape Representation by focusing first on 2D methods. Using the example of a simple curve, we looked at four ways of representing the curve in 2D. Each method has its advantages and disadvantages:

The simplest way of representing a curve is a point cloud, or a finite subset of points on the curve. The advantage is that this information is easy to store, since it’s just a list of coordinates. However, it lacks information about how those points are connected, and one point cloud could represent many different shapes.

The second method is a polyline or polygonal line, which consists of a point cloud plus a piecewise linear interpolation between connected points. Like a point cloud, a polyline is easy to store. It’s also easy to determine intersections between them, and easy to query–to determine whether any given point lies on the polyline. However, since a polyline is not differentiable at the vertices, it does not allow for differential quantities such as tangents, normal vectors, or curvature. It also needs many points to be stored in order to visually approximate the desired curve.

Third, we can use a spline, which is a piecewise polynomial interpolation with forced continuous derivatives. Splines have differential continuity and don’t need many points in order to approximate a curve but are more difficult to query and to solve intersections.

Finally, we have implicit shape representations, which use implicit functions to define a shape as the region of the plane where the function equals zero. The advantages of implicit representations include easy computation of boolean operations, and it is also possible to treat the shape as an image and use image processing tools and machine learning algorithms. However, not every shape can be represented implicitly, and they are hard to manipulate for many graphics applications.

These methods of shape representation in 2D formed the scaffolding for us to later build an understanding of shape representation in 3D.
